Equipment Overview
Arc spray gun (Electric drive)
6Lakh - 20Lakh
Spray Gun
Metal Spray Equipment
Arc Spray Gun
Air Pressure
50-70 psi
Wire Size
1.6 - 3.17 mm
Input Supply
415 V/3P/50 - 60hz
Direct consultation for equipment selection
Brochure and commercial support
Application-based product guidance
Technical Details
Technical specifications and additional information for Arc spray gun (Electric drive).
Technical Specifications
| Metal Spray Equipment | Arc Spray Gun |
|---|---|
| Air Pressure | 50-70 psi |
| Wire Size | 1.6 - 3.17 mm |
| Input Supply | 415 V/3P/50 - 60hz |
| Application Methods | Spray Coating |
| Brand | Airo Shot Blast Equipments |
| Power Requirement | 7 Kw - 25 Kw |
| Weight | 126 Kg - 226 Kg |
Additional Information
| Color | As per client requirement |
|---|---|
| Country | India |
| Delivery Time | 15-20 Days |
| Production Capacity | 4-5 |
| Packaging Details | Polly Pack With Bubble Packing |
Applications and Suitability
Application fit and key selection factors before enquiry.
- Arc Spray Gun provides a great quality coating.
- Improve component service life.
- Bring used parts back to their original, or even better, condition.
- Recover damaged machined components.
- Offer a superior bond coat as part of a covering system.
Best for
Spray Gun requirement
Typical use
Application and operating setup review
Next step
Quote, brochure, or suitability discussion
Why Buyers Choose This Spray Gun
Better application control
Choose a spray gun that supports your coating work, finish expectation, and usage requirement.
Right operating fit
Compare spray pattern, handling comfort, and process suitability before moving to quotation.
Product clarity
Review technical details, product information, and recommendation support before finalizing.
Buying support
Our team assists with brochure sharing, quote discussion, and application guidance.
How We Help You Finalize
Step-by-step guidance before pricing and final product discussion.
We help identify the right spray gun for your requirement.
Check technical details, product information, and support recommendation before finalizing.
Request the latest quote, brochure, and support through one enquiry path.
Product Overview

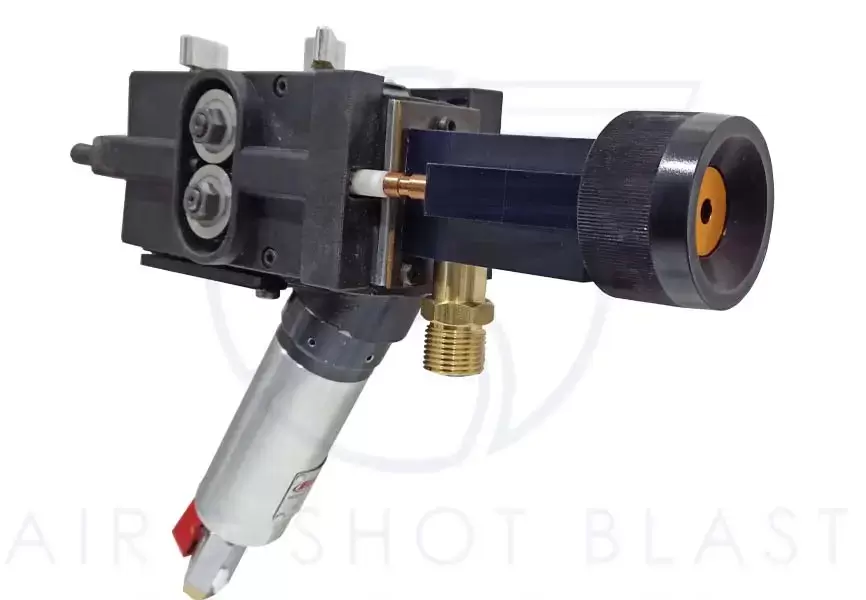

Arc Spray Gun
Arc spray gun (Electric drive) is a type of Arc spray system that is used for the coating process on the surface of the substrate. In an electric drive arc spray gun the high power capacity (400 A) allows depositing coatings from both hard and soft wires very quickly and economically.
Airo Shot Blast coatings applied using the system have excellent bond strength, high hardness, low porosity, and are easily machined. When soft wires are using high coatings rates of up to 32 kg/h (70 lb/h) are possible.

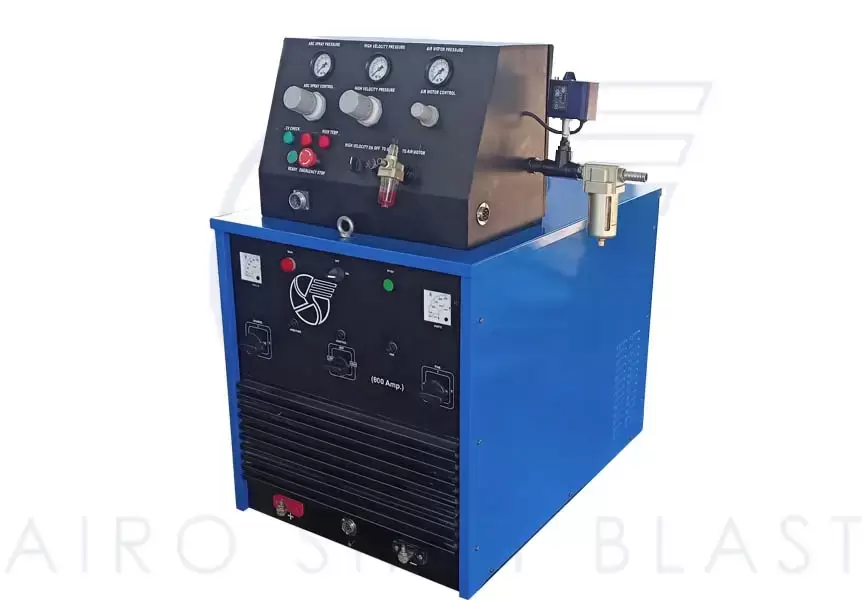

Arc spray system (Electric drive) results in high deposition rates, very dense, low oxide coatings, and also a reduction in consumables and maintenance. In Arc spray gun (electric drive) voltage measurement is at the gun for reliable coating results.
In an electric drive arc spray gun system, a motor is used to push and pull the coating wire. This motor is connected to the control panel and drives with electricity. This motor coordinating the wire of feedstock. In it, the wire feed is smooth and allows wire up to 15 meters easily. This electric drive arc spray gun is added for precision and automation.
Specifications of Arc Spray Gun
| DESCRIPTION | MODEL NO.200 | MODEL NO. 400 | MODEL NO.600 |
| WIRE SIZE | 1.6mm | 1.6-3.17mm | 2-3.17mm |
| INPUT SUPPLY | 415v/3p/50-60hz | 415v/3p/50-60hz | 415v/3p/50-60hz |
| POWDER REQUIREMENT | 7kw | 15k.w | 25k.w |
| WEIGHT | 126 kg | 199k.g | 226k.g |
| HIGH-VELOCITY OPTION INSTALLED | NO | yes | yes |
| ALUMINIUM | 4.40 | 8.70 | 12.90 |
| ZINC | 14.99 | 29.99 | 44.99 |
| AL-BRONZE | 7.40-7.99 | 14-15.99 | 22.60-23.99 |
| CR-NI-STEEL | 6.70-7.20 | 13.30-14.40 | 19.90-21.50 |
| ALUMINIUM | 13.04 | 26.07 | 39.10 |
| ZINC | 13.07 | 26.20 | 39.20 |
| AL-BRONZE | 10.99 | 21.80 | 32.70 |
| CR-NI-STEEL | 7.30 | 14.59 | 21.88 |
Note:-
- Yellow blocks are for max. Output (k.g/hr)
- Blue blocks are for max. Coverage (m3/100 um/hr)
Arc Spray Gun Features and Benefits
- superior flexibility in work configurations.
- Advanced controls deliver.
- Electric drive for smooth and consistent wire feed.
- Ease of use and reliable results.
- Easily spray hard, soft or cored wires.
- High power allows spraying the hardest wires quickly.
- Provide thick and low oxide coating.
- Spray gun coating tip in fixed position assures consistent, repeatable coatings.
- Fast and simple changeover of wire feedstock.
Arc Spray Gun Industrial Uses
- Power Generation.
- Waste Incineration.
- Electronics.
- Automotive.
Arc Spray Gun Manufacturer in India
We are a manufacturer, supplier of arc spray systems, zinc spray gun, twin wire arc spray gun at a low price (cost) in India, UAE, Qatar, Canada, Italy, Iraq, Saudi Arabia. Thermal Spray Gun should be used after sand blasting machine. Sandblasting and shot blasting machine creates a rough surface so that automized spray metal makes a good grip on the metal, then the metal life is increased by this process.
- Delivery Time- Minimum Time
- Port Of Dispatch- Thar Dry Port
- Production Capacity- 2-3 Per Month
- Packaging Details- Box
- Payment Terms- L/C (Letter of Credit)/T/T (Bank Transfer)
