Machine Overview
Suction Blasting Cabinet
75 K - 3.5 Lakh
Shot Blasting Cabinet
Material
Mild Steel
Machine Type
Suction type
Grade
Automatic, Manual
Cleaning rate
3-5 sqr. mtr/ hr
Direct consultation for machine selection
Brochure and commercial support
Application-based product guidance
Technical Details
Technical specifications and additional information for Suction Blasting Cabinet.
Technical Specifications
| Material | Mild Steel |
|---|---|
| Machine Type | Suction type |
| Grade | Automatic, Manual |
| Cleaning rate | 3-5 sqr. mtr/ hr |
| Abrasive Storage Capacity | 28 - 48 Lit. |
| Usage | Surface Cleaning & Finishing |
| Nozzle Type | Y Gun |
Additional Information
| Color | As per client requirement |
|---|---|
| Country of Origin | India |
| Brand | Airo Shot Blast Equipments |
| Delivery Time | 15-20 Days |
| Production Capacity | 5 |
| Packaging Details | Polly Pack With Bubble Packing |
Applications and Suitability
Application fit and key selection factors before enquiry.
- Metals are cleaned with a suction blasting cabinet to remove carbon buildup, heat scale, mill scale, and rust.
- Removed with a suction blaster cabinet components that have been painted, powder coated, plated, and anodized.
- Cabinet for suction blast casts and auto parts are free of burrs, parting lines, flashings, and other flaws.
- The Suction Blasting Cabinet is used to clean the casting mold of dust and contaminants.
- Suction Blasting Cabinets operate at a lower pressure than Pressure Blasting Cabinets and allow convenient surface finishing without causing damage.
Best for
Shot Blasting Cabinet requirement
Typical use
Application and production requirement review
Next step
Quote, brochure, or suitability discussion
Why Buyers Choose This Cabinet
Controlled cabinet blasting
Choose a cabinet that supports cleaner blasting, safer handling, and controlled component cleaning.
Better surface preparation
Compare cabinet suitability for cleaning, descaling, and finishing work before moving to quotation.
Cabinet setup clarity
Review working size, blasting arrangement, and accessories before finalizing the purchase.
Selection support
Our team assists with brochure review, product guidance, and buying clarity.
How We Help You Finalize
Step-by-step guidance before pricing and final product discussion.
We help identify the suitable shot blasting cabinet for your requirement.
Check technical details, application fit, and recommendation support before finalizing.
Request the latest quote, brochure, and support through one enquiry flow.
Product Overview

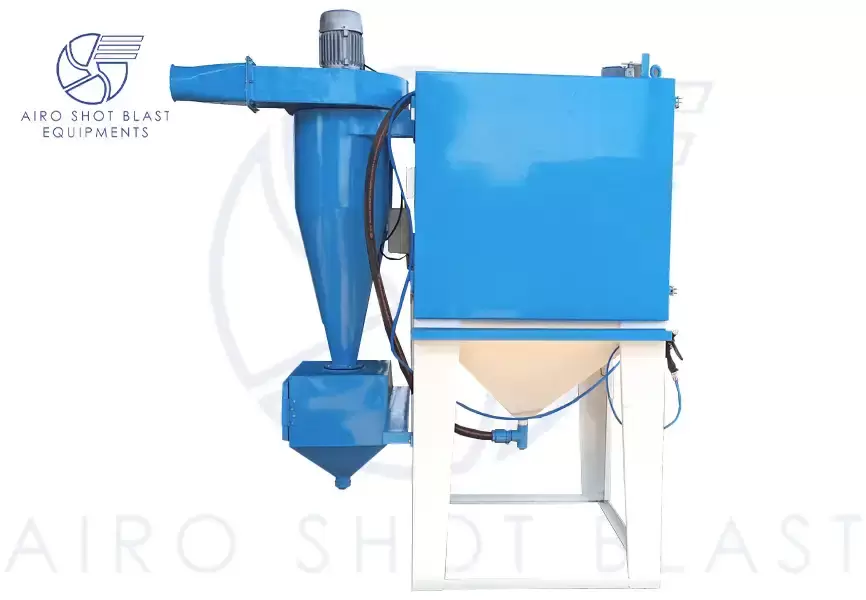

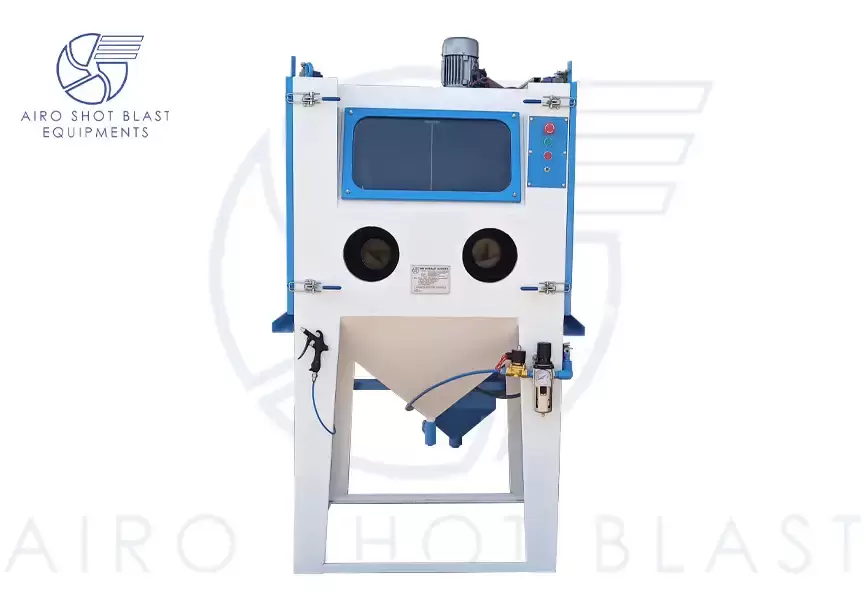

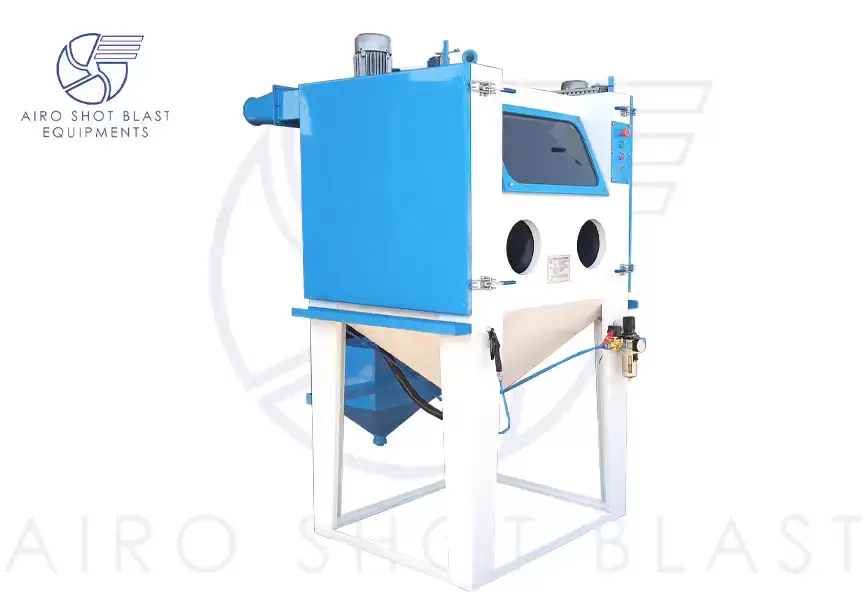

Suction Blaster Cabinet
Suction Blasting Cabinet is based on the Injection Suction system of blasting. The industrial suction blasting cabinet machine secures non-stop working and no break in the blasting cycle. It is utilized for light and medium-size components/particles where the surface is to be cleaned or deburred or to give a fine matte finish. It works on the Venturi system to get rough from a non-pressurized storage hopper to the blast gun where it is mixed with the compressed air stream and propelled against the work surface or shot blasting surface.
Specifications of Suction Blasting Cabinet
| Machine Type | Cabinet Type |
| Number Of Doors | Single/ Double as per requirement. |
| Automation Grade | Automatic/ Semi-Automatic/ Manual - As Per Requirement. |
| Single Or Double Door | as per requirement/ availability. |
| Portable | Non-Portable |
| Minimum Order Quantity | 1 Number |
Types of Suction Blasting Cabinet:
Shot blasting cabinet is many types - Automatic and Manual. Our manual shot blasting machine cabinets are :
- Airo SB 6060
- Airo SB 9182
- Airo SB 12090
Suction Blasting Cabinet is most easily recognized by having two hoses (one for air and one for abrasive grit running to the blasting gun. When we are operating with a suction-blast gun, it is easy to recognize, because it has two hoses attached to it, one giving compressed air & one vacuum pipe (Grit blasting hose) is bringing media into the gun.
Dimensions of Suction Blasting Cabinet
| Description | ASB6060 | ASB9182 | ASB12090 |
| Working chamber (mm) | (l)600x(w)600x(h)600 | (l)820x(w)910x(h)775 | (l)900x(w)1200x(h)900 |
| Door opening(mm) | (w)500x(h )500 |
(w)730x(h)675 | (w)800x(h)800 |
| Overall dimension(mm) | (l)1500x(w)800x(h)1660 | (l)1400x(w)1070x(h)2000 | (l)1700x(w)1365x(h)2570 |
| Compressed air required (cfm) | 17 | 20 | 47 |
| Cleaning area(Sqr. Mtr.) | 4-7 | 4-7 | 15-21 |
| Nozzle (mm) | 5/6 | 5/6 | 10 |
Suction Blasting Cabinet Manufacturer in India
We manufacturer Suction Blasting Machine is a low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur and all cities. Suction blasting cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc. Shot blasting cabinet from shot blaster automate production sequences and improve the work environment. Shot Blast cabinet work on low air so it is economical from other type blast cabinet. Cleaning Rate is low from the pressure blasting cabinet.
Support and Delivery
Cabinet and blasting support
- Cabinet size and usage guidance
- Blasting application discussion
- Brochure and quote support
- Commercial follow-up for buying clarity
Delivery and installation
- Delivery coordination guidance
- Installation discussion support
- Pre-dispatch cabinet understanding
- Support on available accessories
Machine Video
Suction Blasting Cabinet video overview and product walkthrough.
Share Your Requirement
Send your job details for a faster machine recommendation and price response.
Tell us the component type, daily production target, and what you expect from the machine. Our team will respond with the relevant brochure, technical detail, and commercial guidance.
Product FAQs
What is Suction Blasting Cabinet used for?
Suction Blasting Cabinet is used for industrial surface preparation, cleaning, and finishing work where buyers need dependable shot blasting cabinet performance for production applications.
Which industries use Suction Blasting Cabinet?
Suction Blasting Cabinet is commonly considered by buyers in foundry, fabrication, steel processing, automotive, engineering, and project-based manufacturing depending on the type of component and production requirement.
How do I choose the right Suction Blasting Cabinet model?
The right model depends on component size, job handling method, required finish, output target, and plant usage. Airo Shot Blast helps buyers compare these points before finalizing Suction Blasting Cabinet.
Can I get the latest price for Suction Blasting Cabinet?
Yes. You can request the latest price for Suction Blasting Cabinet by sharing your requirement, preferred capacity, and production details so the team can guide you with a suitable commercial starting point.
Does Airo Shot Blast provide brochure and selection support for Suction Blasting Cabinet?
Airo Shot Blast can share brochure support, machine details, and requirement-based selection guidance for Suction Blasting Cabinet so buyers can compare models before moving to quotation.
What details should I send before enquiring about Suction Blasting Cabinet?
Before enquiring about Suction Blasting Cabinet, share your component type, material, production volume, finish expectation, and any preferred machine size or configuration for a more relevant response.
