- Cleaning and burr removal without compromising the object's surface.
- Etch and smooth glass for decorative or functional uses in houses, hotels, etc.
- For a crisp, tidy appearance, surfaces are peened.
- Removing the dirt from printed circuit boards' holes (PCBs).
Leading Supplier & Exporter
Trustseal Verified
ISO Certified
Manufacturer

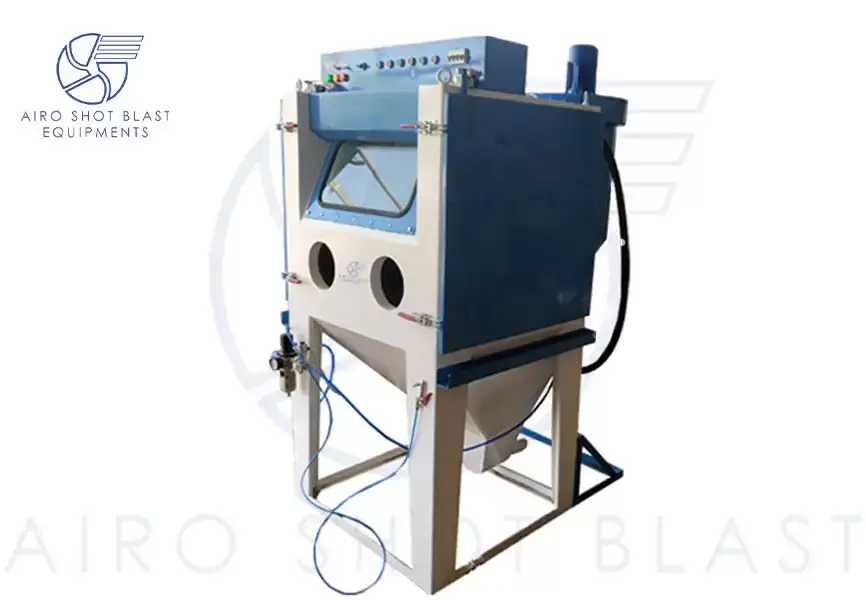

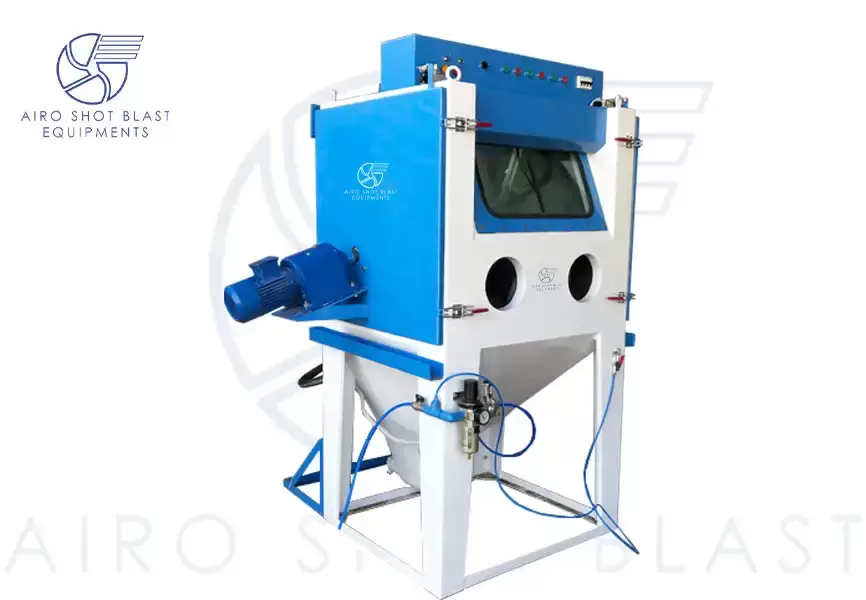

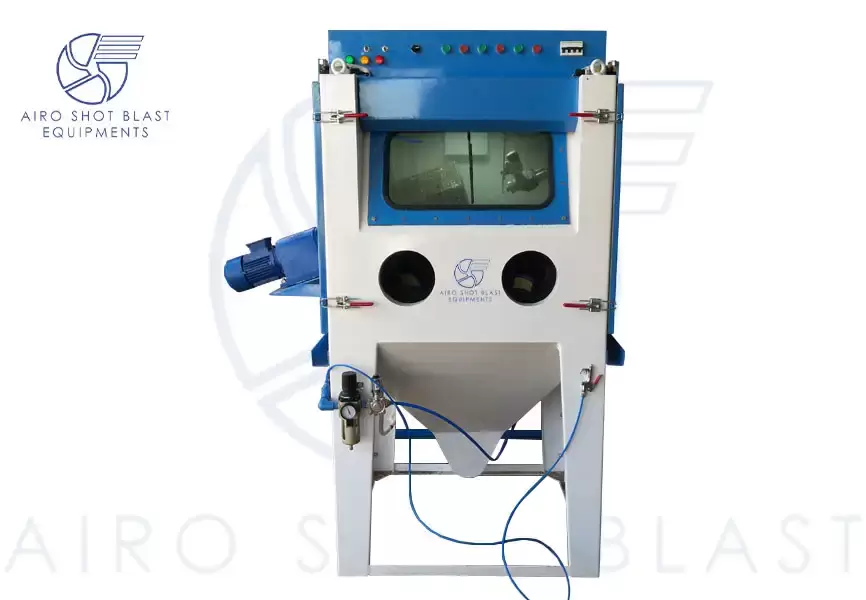

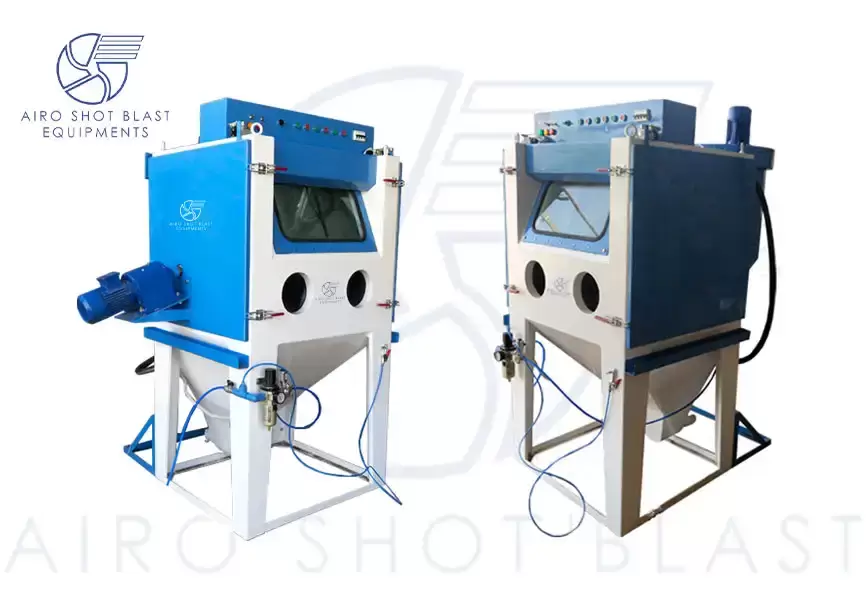

Wet Blast Cabinet
The Wet blasting cabinet (Shot Blasting Machine) or high-pressure water blast cabinets are typically used for surface improvement, cleaning, preparation of coatings, deburring, and shot peening. Wet shot blaster Cabinet is mainly done for finishing delicate, precision parts. Their circulation of the water/abrasive mixture achieved by high durability sludge pumps, which provide excellent technical and environmental benefits. It works on the reusable abrasive media process, which reduces the cost and time.
The wet blasting machine uses a seal-less slurry pump to convert the abrasive media and water into a slurry mixture. This slurry mixture is pump directly to the abrasive blast gun where compressed air pressure moves the mixture with the desired pressure rating.
The exhaust blower filter maintains a negative cabinet pressure that prevents the cabinet mist from escaping during the blasting process. During the process, freshwater is rinsed out on the window after fix interval of time which provides continuous operator visibility through the operator view window. Light enters the cabinet through a sight window located on the top side of the shot blasting cabinet.

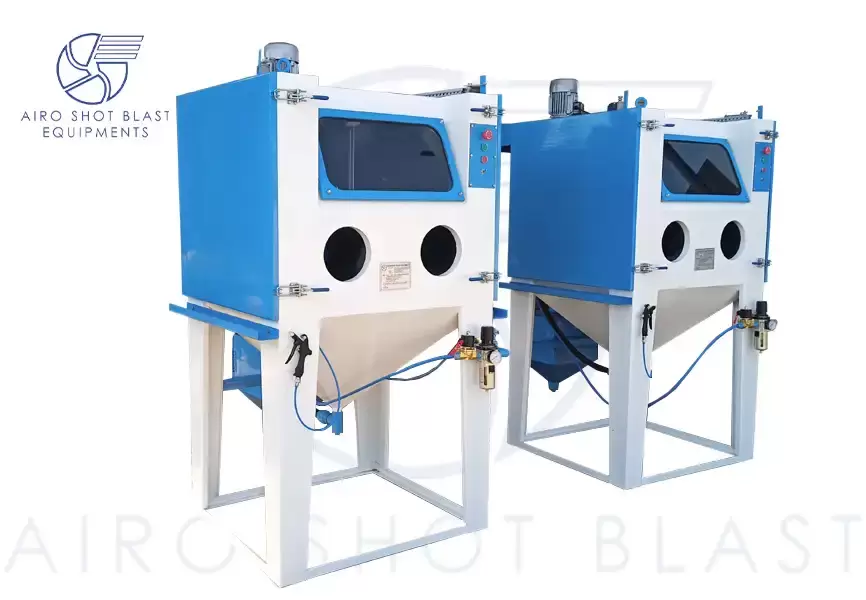

The wet blasting machine works on the suction principle as a suction blasting cabinet. The same gun is using in the Suction & Water Blasting operation. Abrasives/ Glass bead/ Aluminum Oxide mixed with water in this cabinet. Sludge is mixed by air bubbles for a constant flow of slurry (water + abrasive)
We manufacture Wet Blasting Cabinet is a low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur,f and all cities. wet blasting cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc. wet blaster cabinet from shot blaster automate production sequences and improve the work environment
Wet Blasting Cabinet Specifications
Wet Blast Cabinet WORKING CHAMBER
Height 600mm
width 600mm
Depth 600mm
DOOR OPENING
height 500mm
width 500mm
OVERALL DIMENSIONS
height 1660mm
width 800mm
depth 1500mm
DUST COLLECTOR(Fabric bag type manual shaking)
Fan Motor 1.5h.p
Fan capacity 400c.f.m
Filter cloth Area 2.0 sq. mt.
Injector office 3mm
Boron carbide Nozzle Short 6mm
Pressure gauge, air regulator &
Moisture separator fitted one no. each
Footswitch & door limit switch provided for safety interlocking
Compressed air required at 80 PSI 20 c.f.m
(for blasting machine only)
Abrasive storage capacity 28(1.0)ltrs. (CFT)
Abrasive feed Induction section
Recommended Abrasive Size 30 mesh to 220 mesh
Application of Shot Blasting Cabinet (Wet) :
- Cleaning of Automobile Components
- Cleaning of Piston, Cylinder
- Remove Corrosion
- Rust Remove
- Paint Remove
