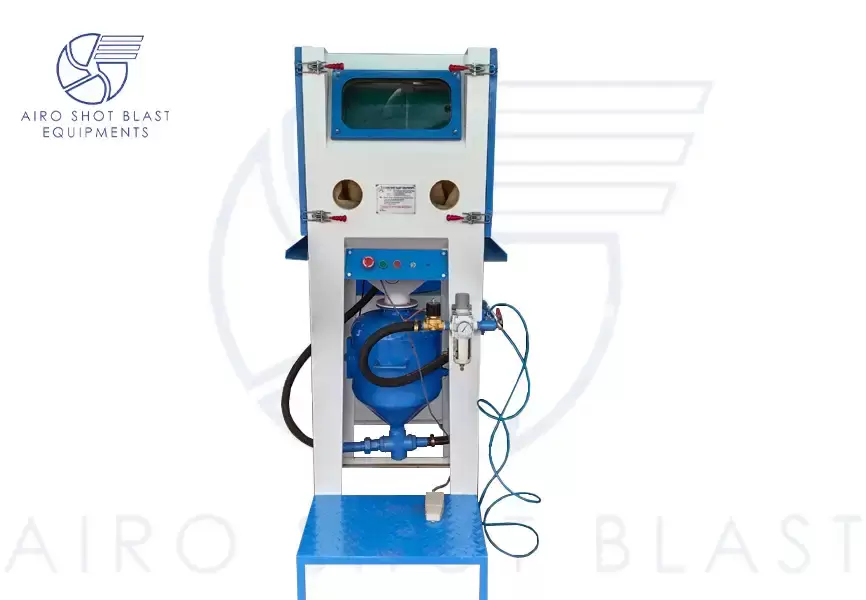

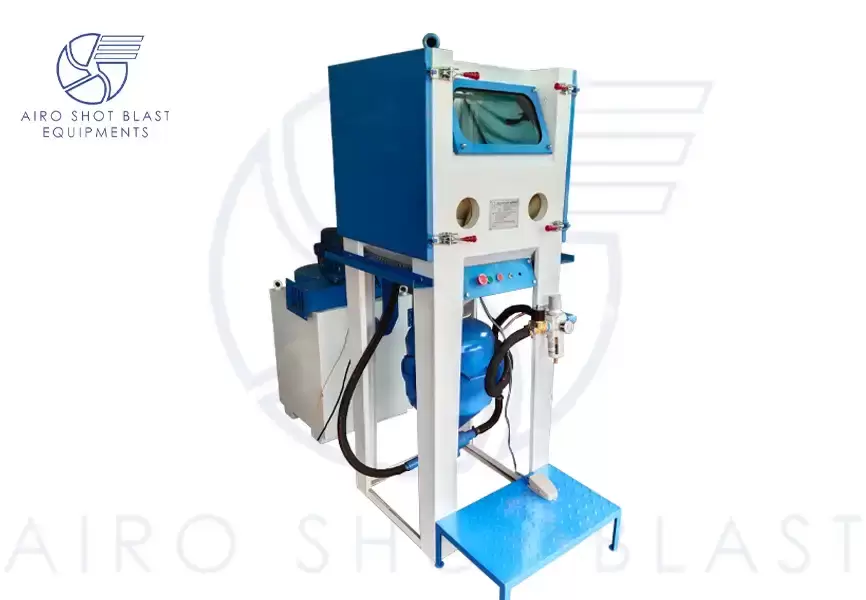

Pressure Blasting Cabinet

Pressure Shot Blaster Cabinet

Pressure Shot Blasting Cabinet works on the direct pressure principle of blasting. When high abrasive media velocity produces by pressure pot blasting cabinet which results in completing the job at a faster rate. A pot bolted below a hopper of a pressure pot blasting cabinet for automatic abrasive refilling arrangements. For the high efficiency of dust collection, a tubular fabric bag dust collector, with a generous filter area is attached with the blaster cabinet as a standard feature.

A manual shaker is provided for shaking. A high-Pressure shot blaster cabinet is recommended for fast cleaning, removal of corrosion, and heavy rust using coarse grits. All types of coarse and medium-sized grits can be used depending on the application.

Realizing a 5 to 10 times higher output (compared to suction feed) direct Blasting Cabinet operates with one hose connected to the sand blasting nozzle. As a small shot blaster pot pressurizes the abrasive equal to the transportation air pressure, the abrasive simply ‘fall’ (by means of gravity) into this air stream and is propelled towards the object. So, In this way, the compressed air is only used for transporting the abrasive (without having to suck it up as well).

Good visibility and effective dust containment are achieved by the powerful dust extracting system which depending on the abrasive media type and application, dust extraction can be optimized by applying automatically cleaned filter cartridges or a cyclone separator.

We manufacturer and supplier of Pressure Blasting Cabinet is a low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur, Vadodra, Surat, Chennai, Kolkata, Assam, Jaipur, Kota, Jodhpur, Udaipur, Gandhinagar, Barmer, and all cities. blasting cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc. pressure shot blast cabinet from airo shot blaster automate production sequences and improve the work environment.

Pressure Shot Blasting Cabinet Specifications:

WORKING CHAMBER

Height 600mm

width 600mm

Depth 600mm

DOOR OPENING

height 500mm

width 500mm

OVERALL DIMENSIONS

height 1660mm

width 800mm

depth 1500mm

DUST COLLECTOR (Fabric bag type manual shaking)

Fan Motor                                                0.5h.p

Fan capacity                                            200c.f.m

Filter cloth Area                                       1.0 sq. mt.

Boron carbide Nozzle Short                    6mm

Pressure gauge, air regulator &

Moisture separator fitted                         one no. each

Footswitch & door limit switch                 provided for safety interlocking

Compressed air required at 80 PSI         55 c.f.m

(for blasting machine only)

Abrasive storage capacity                        28(1)ltrs. (CFT)

Abrasive feed                                            Direct pressure

Recommended Abrasive Size                  30 mesh to 100 mesh

Pressure Blasting Cabinet in India

We manufacture Pressure Shot blasting Cabinet is a low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur and all cities. Pressure blasting cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc. we are also provide sand blasting machine, sand blasting cabinet, automatic sand blasting machine, shot blasting machine, tumblast shot blasting machine, portable shot blasting machine, abrasive media, thermal spray gun, pressure blasting cabinet in India.
