Machine Overview

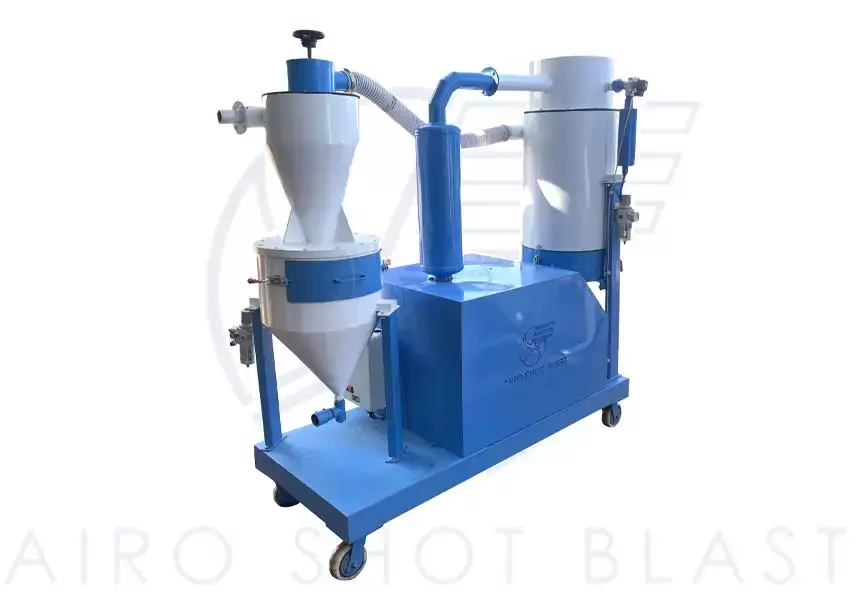

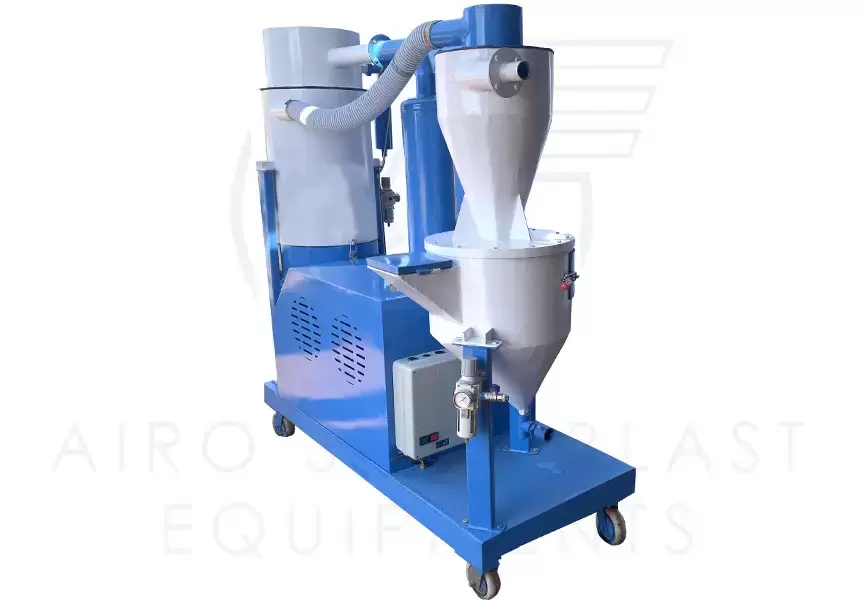

Vacuum Sand Blasting Machine

3 Lakh - 8 Lakh Sand Blasting
Blasting capacity 3-5 mtr\hr with 6mm nozzle
Machine type Automatic/ mannual/ semi automatic
overall dimensions 800mm X 2000mm X 2200 mm
compressed air required 90 CFM / min at 6.33 sq mtr/hr
Direct consultation for machine selection Brochure and commercial support Application-based product guidance
Technical Details

Technical specifications and additional information for Vacuum Sand Blasting Machine.

Technical Specifications
Blasting capacity 3-5 mtr\hr with 6mm nozzle
Machine type Automatic/ mannual/ semi automatic
overall dimensions 800mm X 2000mm X 2200 mm
compressed air required 90 CFM / min at 6.33 sq mtr/hr
Type of nozzle required Tungsten carbide
Principle Pressure type
Type of dust collector Fabric bag dust collector /Reverse pulse jet pleated filter type dust collector
cleaning of dust bags Motorized shaking\ pulse jet air
Additional Information
Color As per client requirement
Country of Origin India
Brand Airo Shot Blast Equipments
Delivery Time 15-20 Days
Production Capacity 4
Packaging Details Polly Pack With Bubble Packing
Applications and Suitability

Application fit and key selection factors before enquiry.

  • Use garnet or steel shot as an abrasive when vacuum blasting on challenging project sites.
  • Tanks, bridges, and infrastructure must be contained.
  • Responsibilities that call for regenerated abrasive media.
  • Friendly to the environment
  • The processes, which are gathered in plastic bags for secure disposal, are free of dust and pollution.
  • Costs associated with using abrasive material are reduced via closed-circuit blasting.
Best for Sand Blasting requirement
Typical use Application and production requirement review
Next step Quote, brochure, or suitability discussion
Why Buyers Choose This Blasting Machine
Cleaner surface preparation

Choose a sand blasting machine that matches cleaning work, finish expectation, and plant use.

Better job-fit selection

Compare machine suitability, blasting output, and media use before moving to quotation.

Configuration clarity

Review tank size, blasting arrangement, and support options before finalizing.

Selection support

Our team assists with brochure review, technical discussion, and application guidance.

How We Help You Finalize

Step-by-step guidance before pricing and final product discussion.

Share the blasting requirement

Tell us the surface type, cleaning work, and expected usage volume.

Compare the right machine

We help identify the suitable sand blasting machine for your requirement.

Review specifications and brochure

Check technical details, application fit, and recommended setup before finalizing.

Move to pricing and enquiry

Request the latest quote, brochure, and support through one enquiry flow.

Product Overview

Vacuum sand blasting machine is suitable for different purposes, applications for surface preparation before thermal spray coating, painting and needs only one man to operate thus it has an easy operating principle. There are various blasters based on pressure vessels in combination with compressed air filters and pressure regulators that provide sufficient velocity for blasting operation in a dust-free environment.

Abrasive grit is automatically and instantly recovered for reuse. No flying dust & grit is there in the air to contaminate the surrounding. We are manufacturers of Vacuum sand/shot blasting machine in India for sale with the best quality.

The process is safe and dust-free thus other production processes can be carried out simultaneously close to the blasting operation.

Vacuum Sand Blasting Machine Advantages

  • 99.9999% dust-free operation because of fully automated blasting & vacuum start/stop sequence provider.
  • After the blasting Clean and abrasive material-free object surface.
  • There is no time loss through automatic filter cleaning and dust discharge is available.
  • Easy disposal of dust collected in plastic bags.
  • The unit can be relocated and/or transported easily as it is portable in nature.
  • A wide range of brushes are available to fit all (flat, cornered, radius) surfaces

A special valve on the pressure vessel allows working with a blasting pressure as low as 1 bar and as high as 7 bars with the same machine. The vacuum sand blasting machine technique can be used on delicate blasting jobs were blasting at low pressures is a must. A vacuum sandblasting machine instrument comes with a specific lightweight blaster head, blaster, and vacuum hose/pipe assembly, as well as a set of brushes to treat flat surfaces as it needs to move from one site to another for its easy operation. The very special fibers are used in brushes to provide the best performance and economy.

Vacuum Sand Blasting Machine Application

  • Wear-resistant metering valve handles all abrasive material or media (also steel grits, fine aluminum oxide, etc.)
  • Have a separate main air valve which provides almost wear- and maintenance-free use.
  • Have spray-painted, galvanized, and non-ferrous fittings.
  • Provide complete safety.

Environmentally friendly

  • No dust and contamination are there in the processes which are collected in plastic bags for safe disposal.

  • Closed-circuit blasting saves on abrasive media utilization costs.

Vacuum Sand Blasting machine price

Vacuum Sand Blasting Machine price in India depends on the type and size of Sand Blasting Machine in India. Airo Shot Blast is the best Sand Blasting Machine, Shot Blasting Machine Manufacturers, & Supplier of Sand Blasting Cabinet, Shot Blasting Cabinet, portable shot blasting machine, automatic sand blasting machine, grit blasting machine, abrasive blasting machine in India at a low price for sale.

Share Your Requirement

Send your job details for a faster machine recommendation and price response.

Tell us the component type, daily production target, and what you expect from the machine. Our team will respond with the relevant brochure, technical detail, and commercial guidance.

Product FAQs
What is Vacuum Sand Blasting Machine used for?

Vacuum Sand Blasting Machine is used for industrial surface preparation, cleaning, and finishing work where buyers need dependable sand blasting performance for production applications.

Which industries use Vacuum Sand Blasting Machine?

Vacuum Sand Blasting Machine is commonly considered by buyers in foundry, fabrication, steel processing, automotive, engineering, and project-based manufacturing depending on the type of component and production requirement.

How do I choose the right Vacuum Sand Blasting Machine model?

The right model depends on component size, job handling method, required finish, output target, and plant usage. Airo Shot Blast helps buyers compare these points before finalizing Vacuum Sand Blasting Machine.

Can I get the latest price for Vacuum Sand Blasting Machine?

Yes. You can request the latest price for Vacuum Sand Blasting Machine by sharing your requirement, preferred capacity, and production details so the team can guide you with a suitable commercial starting point.

Does Airo Shot Blast provide brochure and selection support for Vacuum Sand Blasting Machine?

Airo Shot Blast can share brochure support, machine details, and requirement-based selection guidance for Vacuum Sand Blasting Machine so buyers can compare models before moving to quotation.

What details should I send before enquiring about Vacuum Sand Blasting Machine?

Before enquiring about Vacuum Sand Blasting Machine, share your component type, material, production volume, finish expectation, and any preferred machine size or configuration for a more relevant response.
