Machine Overview
Internal Pipe Blasting Equipment
45 K - 5 Lakh
Sand Blasting
Material
Alumnium and Mild Steel
Grade
Manual, automatic, and semi-automatic
Production Capacity
5 -6 square meter/hour
Brand
Airo Shot Blast Equipments
Direct consultation for machine selection
Brochure and commercial support
Application-based product guidance
Technical Details
Technical specifications and additional information for Internal Pipe Blasting Equipment.
Technical Specifications
| Material | Alumnium and Mild Steel |
|---|---|
| Grade | Manual, automatic, and semi-automatic |
| Production Capacity | 5 -6 square meter/hour |
| Brand | Airo Shot Blast Equipments |
| Machine Type | Internal Pipe Blasting Machine |
| Application | Internal pipe, rust corrosion, and paint removal |
| Mounting | Wheel Mounting |
| No. of nozzles | 2 |
| Production capacity | 20 - 50 sq.mtr/hr |
Additional Information
| Color | As per client requirement |
|---|---|
| Country | India |
| Brand | Airo Shot Blast Equipments |
| Delivery Time | 15-20 Days |
| Production Capacity | 4-5 |
| Packaging Details | Polly Pack With Bubble Packing |
Applications and Suitability
Application fit and key selection factors before enquiry.
- Shipyards, pipe factories, refineries, and water, gas, and chemical production facilities are a few examples of industrial applications.

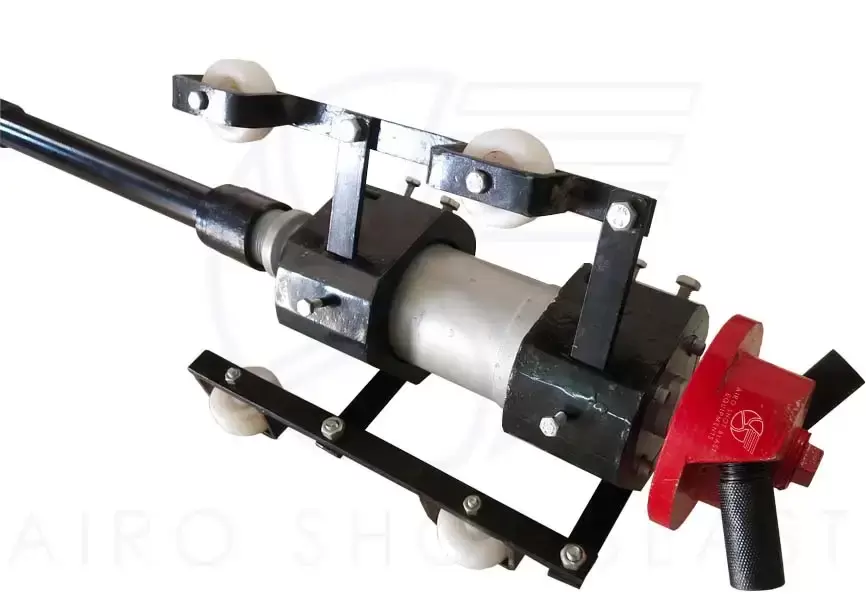

- Adjust the Moving Ring so that the eight carriage wheels rest on the inner wall of the pipe to be cleaned, and then tighten the thumbscrew to secure it.
- Place the rotating nozzles into the pipe to be cleaned for the trial run and sand blasting, but do not begin with the nozzles outside the pipe to be cleaned.
- Adjust the regulating sleeve of the sand feed pipe so that it is as tight as possible (first, loosen the lock nut, then adjust with the provided wrench, then tighten the lock nut after adjustment), however, the speed must be controlled between 200 and 500 rpm.
- Before beginning to sandblast, insert the sandblaster into the pipe that needs to be cleaned and move it from one end to the other.
Best for
Sand Blasting requirement
Typical use
Application and production requirement review
Next step
Quote, brochure, or suitability discussion
Why Buyers Choose This Blasting Machine
Cleaner surface preparation
Choose a sand blasting machine that matches cleaning work, finish expectation, and plant use.
Better job-fit selection
Compare machine suitability, blasting output, and media use before moving to quotation.
Configuration clarity
Review tank size, blasting arrangement, and support options before finalizing.
Selection support
Our team assists with brochure review, technical discussion, and application guidance.
How We Help You Finalize
Step-by-step guidance before pricing and final product discussion.
We help identify the suitable sand blasting machine for your requirement.
Check technical details, application fit, and recommended setup before finalizing.
Request the latest quote, brochure, and support through one enquiry flow.
Product Overview
Internal Pipe Blasting Machine
Internal pipe blasting equipment is classified into air blasting equipment and wheel blasting equipment. the air blasting equipment is mainly for small pipes which a diameter under 500mm, and it can blasting processing up to 8 pieces at one time with automatic pipe handling systems. the wheel blasting equipment is mainly for big pipes which a diameter above 500mm, and it can only blast cleaning one piece at a time.
Internal Pipe Cleaning Equipment

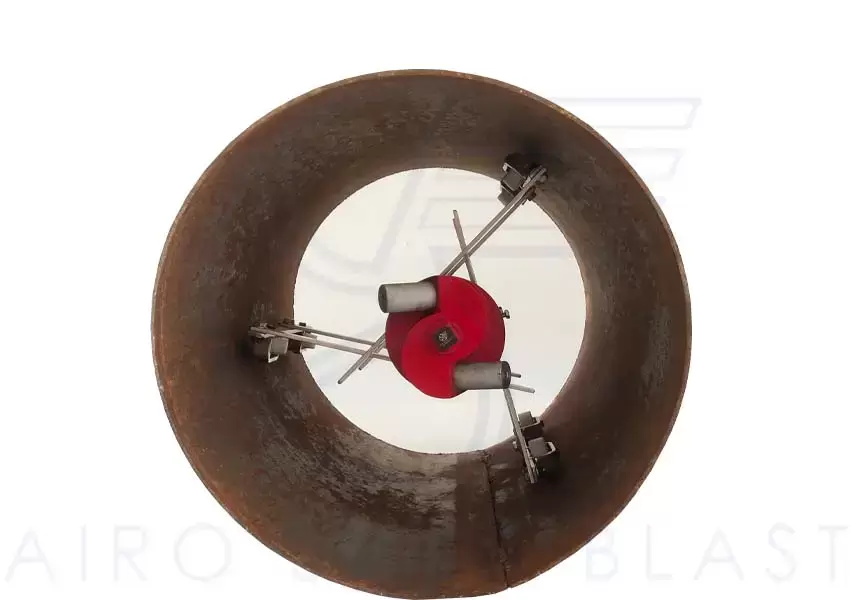

Airo Shot Blast internal pipe cleaning tool quickly, effectively, and reliably removes corrosion, dust, and another residue from inaccessible areas inside the piping. The operation is simple: a blasting pipe is fitted with a pipe tool, and the tool is withdrawn from one end of the pipe to the other.
Internal Pipe Blasting
This kind of Internal pipe blasting Machine can not only clear the dirt, scale, welding slag, etc. from the internal pipes, but it also can reduce the internal surface stress. Thus, this kind of equipment can vastly increase the service life of the steel pipe and reduce the internal corrosion of the steel pipe, thereby improving the intrinsic and appearance quality of the steel pipe.
We offer special Internal pipe blasting machines that operate on the air blast principle. The lance Sand blasting nozzle is utilized for cleaning the interior surface of the pipe.
The machine can be provided with an inlet and outlet conveyor and handling system. The shot-blasted surface provides superior bonding for the final coating.
The machine is widely used for cleaning new or utilized seamless steel pipes.
Advantages of Internal Pipe Blasting Equipment:
- Improve the corrosion resisting ability.
- Improve the bonding strength of steel surfaces and coatings.
- Further, increase the anti-fatigue capability of the steel tube and extend its life.
- And optimize the craftwork state of the pipe internal surface.
- Most importantly, the whole blasting unit greatly enhances the efficiency of cleaning.
- Moreover, Reduce the labor intensity of cleaning works.
Internal Pipe Coating
The Airo Shot Blast orbiter applies a wide range of coating types clearly and evenly to the inner diameter of piping, following the blast process. Set at one end of the pipe and returned along its length, the Orbiter applies a consistent layer of paint thru a rotating atomizing nozzle, assuring even coating. The Orbiter is fit with any available airless pump and comes in the following two
Internal pipe blasting equipment Manufacturer
Airo Shot Blast is a Manufacturer of Internal pipe blasting equipment in India. We are also a Manufacturer, Supplier, and Exporter of Sand Blasting Machine, Portable Shot Blasting Machine, Grit Blasting Machine, pressure Sand blasting cabinet, shot blasting room, Sand Blasting Cabinet at a low price for sale.
Support and Delivery
Machine and application support
- Machine and application discussion
- Selection guidance according to blasting use
- Brochure and quote support
- Commercial follow-up for buying clarity
Delivery and installation
- Delivery coordination guidance
- Installation discussion support
- Pre-dispatch machine understanding
- Support on available options and add-ons
Machine Video
Internal Pipe Blasting Equipment video overview and product walkthrough.
Related Products
AIRO P7 1000 - Portable Sand Blasting Hopper
Compare this product and review the details.
AIRO P7 150 - Sand Blasting Hopper
Compare this product and review the details.
AIRO P7 500 - Portable Sandblasting Machines
Compare this product and review the details.
Automatic Sand Blasting Machine
Compare this product and review the details.
Bench Top Sand Blasting Cabinet
Compare this product and review the details.
Portable Sand Blasting Machine
Compare this product and review the details.
Portable Sand Blasting Machine Manufacturer (Airo P7 300)
Compare this product and review the details.
Share Your Requirement
Send your job details for a faster machine recommendation and price response.
Tell us the component type, daily production target, and what you expect from the machine. Our team will respond with the relevant brochure, technical detail, and commercial guidance.
Product FAQs
What is Internal Pipe Blasting Equipment used for?
Internal Pipe Blasting Equipment is used for industrial surface preparation, cleaning, and finishing work where buyers need dependable sand blasting performance for production applications.
Which industries use Internal Pipe Blasting Equipment?
Internal Pipe Blasting Equipment is commonly considered by buyers in foundry, fabrication, steel processing, automotive, engineering, and project-based manufacturing depending on the type of component and production requirement.
How do I choose the right Internal Pipe Blasting Equipment model?
The right model depends on component size, job handling method, required finish, output target, and plant usage. Airo Shot Blast helps buyers compare these points before finalizing Internal Pipe Blasting Equipment.
Can I get the latest price for Internal Pipe Blasting Equipment?
Yes. You can request the latest price for Internal Pipe Blasting Equipment by sharing your requirement, preferred capacity, and production details so the team can guide you with a suitable commercial starting point.
Does Airo Shot Blast provide brochure and selection support for Internal Pipe Blasting Equipment?
Airo Shot Blast can share brochure support, machine details, and requirement-based selection guidance for Internal Pipe Blasting Equipment so buyers can compare models before moving to quotation.
What details should I send before enquiring about Internal Pipe Blasting Equipment?
Before enquiring about Internal Pipe Blasting Equipment, share your component type, material, production volume, finish expectation, and any preferred machine size or configuration for a more relevant response.
