System Overview
LPG CYLINDER SPRAY BOOTH
10 Lakh - 80 Lakh
Spray Booth System
Automation Grade
Semi-Automatic
Type Of Thermal Spraying
Arc Spray
Power Supply
1.5 HP/415V AC/3P/50Hz
Track Dimension
1225mm (L) x 625mm (H)
Direct consultation for system selection
Brochure and commercial support
Application-based product guidance
Technical Details
Technical specifications and additional information for LPG CYLINDER SPRAY BOOTH.
Technical Specifications
| Automation Grade | Semi-Automatic |
|---|---|
| Type Of Thermal Spraying | Arc Spray |
| Power Supply | 1.5 HP/415V AC/3P/50Hz |
| Track Dimension | 1225mm (L) x 625mm (H) |
| Spray Booth Opening Size | 900x750mm (WxH) |
| Production Output | 700 to 800 nos. per shift |
| Cylinder Size | 305mm x 620mm length |
| Material to be painted | Steel, Aluminum, Iron |
Additional Information
| Color | As per client requirement |
|---|---|
| Country | India |
| Brand | Airo Shot Blast |
| Delivery Time | 20-25 Days |
| Production Capacity | 2 |
Applications and Suitability
Application fit and key selection factors before enquiry.
- For Zinc Metallizing of the external surface of LPG Cylinders
- These Painting Booth are specially designed for LPG cylinder painting.
Best for
Spray Booth System requirement
Typical use
Process fit and operating requirement review
Next step
Quote, brochure, or suitability discussion
Why Buyers Choose This System
Cleaner coating environment
Choose a spray booth system that supports cleaner finishing work and practical production use.
Better finishing control
Compare system suitability according to part size, process flow, and coating requirement.
Setup clarity
Review system layout, working arrangement, and support options before moving to quotation.
Selection support
Our team assists with brochure review, technical discussion, and buying clarity.
How We Help You Finalize
Step-by-step guidance before pricing and final product discussion.
We help match the suitable spray booth system to your requirement.
Check technical details, layout fit, and recommendation support before finalizing.
Request the latest quote, brochure, and support through one clear enquiry path.
Product Overview
LPG Spray Booth

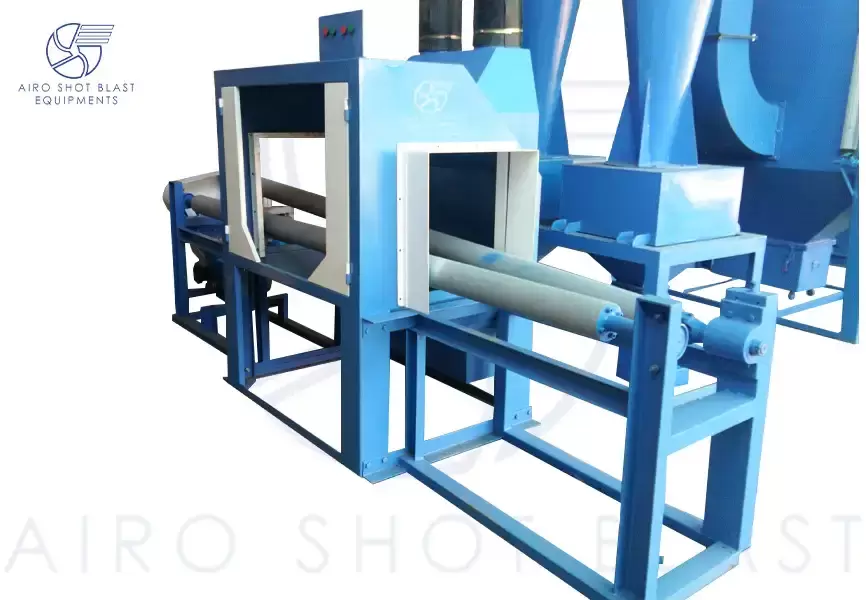

In the LPG Cylinder Spray Booth, the cylinder is placed manually on a twin roller conveyor which goes ahead in the longitudinal direction as well as rotates inside the dry spray booth. This twin roller conveyor is operated by an electric motor.
The Operative spray Zinc with the help of either Wire Flame Spray Gun or Arc Spray Gun (Air Drive or DC Drive) with Power Source.
The dust and fume generated during the Zinc Metallizing process are absorbed by the exhaust fan mounted on Fabric Dust Collector. The Cyclone collects the coarse dust and very fine dust gets collected in the Fabric Bag Dust Collector, keeping the environment clean and friendly.
Specifications of LPG Cylinder Spray Booth
| Automation Grade | Semi-Automatic |
| Type Of Thermal Spraying | Arc Spray |
| Brand | Metal Coat |
| Warranty | 1 Year |
| Country of Origin | Made in India |
| Power Supply | 1.5 HP/415V AC/3P/50Hz |
| Track Dimension | 1225mm (L) x 625mm (H) |
| Spray Booth Opening Size | 900x750mm (WxH) |
| Production Output | 700 to 800 nos. per shift |
| Cylinder Size | 305mm x 620mm length |
The track is made on both sides of the Spray Booth to accommodate the twin roller conveyor. The Conveyor is driven by an electric motor. A three-step pulley system is also provided for speed adjustment.

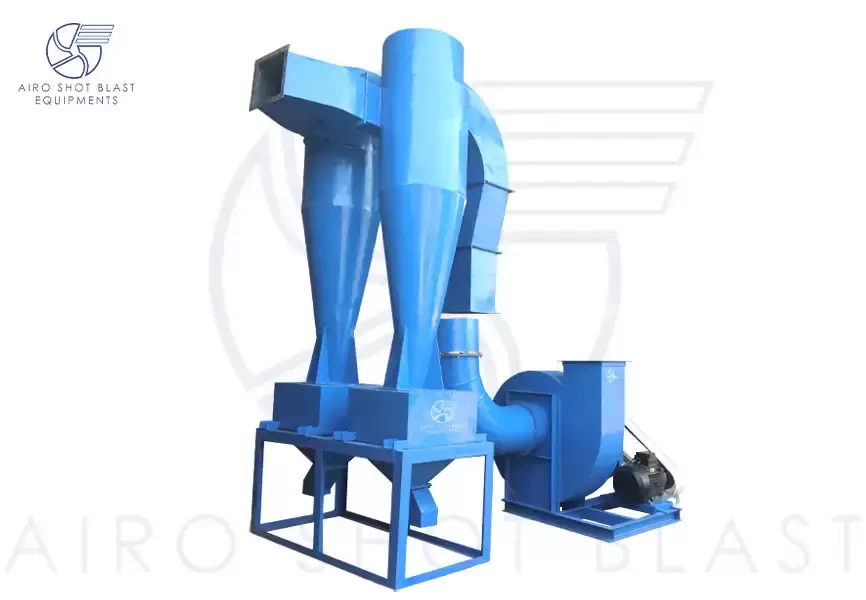

Twin Cyclone Dust Collector
Twin Cyclone dust collector, fabricated from heavy gauge MS Sheet is provided to facilitate the collection of coarse dust.
Fabric Bag Dust Collector
A fabric bag dust collector is provided to collect the fine dust generated during metalizing operation.
Ducting
Suitable ducting from spray booth outlet to inlet of cyclone dust collector and from cyclone dust collector outlet to the inlet of fabric bag dust collector is provided.
LPG Cylinder Spray Booth Manufacturer in India
Airo shot Blast is a manufacturer of LPG Cylinder Spray booth in India at a low price for sale. we are the leading manufacturer, supplier & Exporter of sand blasting machine, shot blasting machine, grit blasting machine, sand blasting cabinet, pressure blasting cabinet, shot blasting cabinet, shot blasting room, shot blasting nozzles, thermal spray gun, arc spray gun, metalizing gun, abrasive media in Jodhpur, Rajasthan, India.
