Machine Overview

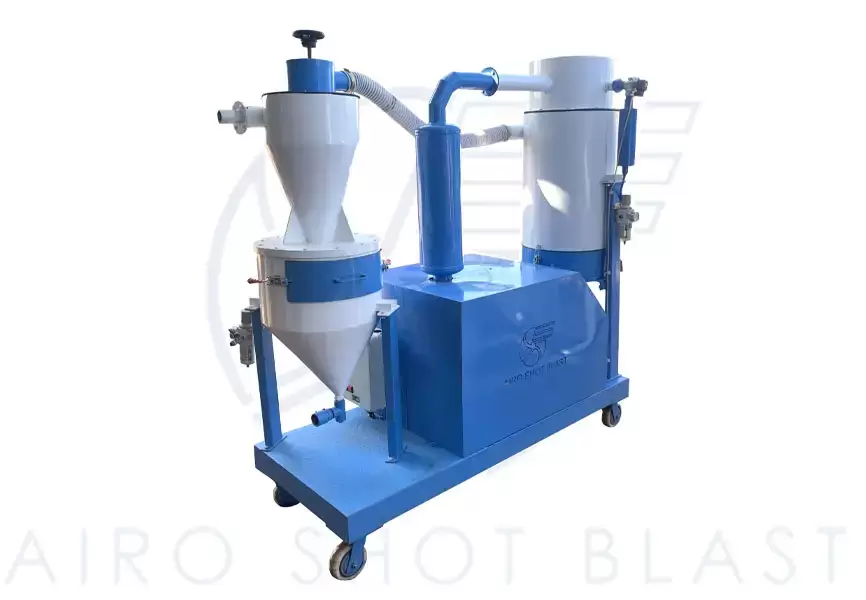

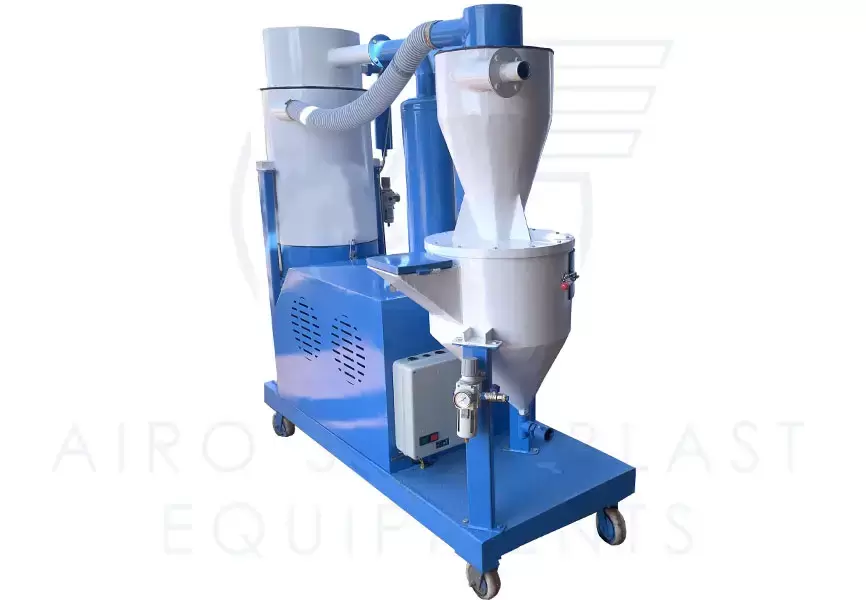

Vacuum blasting machine

3 Lakh - 8 Lakh Grit blasting
Blasting capacity 3-5 mtr\hr
Nozzle Size 6mm
Overall dimensions 800mm X 2000mm X 2200 mm
Grade Manual, Semi Automatic, Automatic
Direct consultation for machine selection Brochure and commercial support Application-based product guidance
Technical Details

Technical specifications and additional information for Vacuum blasting machine.

Technical Specifications
Blasting capacity 3-5 mtr\hr
Nozzle Size 6mm
Overall dimensions 800mm X 2000mm X 2200 mm
Grade Manual, Semi Automatic, Automatic
Compressed air required 90 CFM / min at 6.33 sq mtr/hr
Type of nozzle Tungsten Carbide Lined
Principle Pressure type
Dust collector Reverse Pulse Jet Dust Collector
Cleaning of dust bags Motorized shaking\ pulse jet air
Material Mild Steel
Machine Type Suction & Pressure Type
Recovery System Vacuum Type
Vacuum Pump Motor 10 HP
Additional Information
Color As per client requirement
Country of Origin Made in India
Brand Airo Shot Blast Equipments
Delivery Time 15-20 Days
Production Capacity 5
Packaging Details Polly Pack With Bubble Packing
Applications and Suitability

Application fit and key selection factors before enquiry.

  • Utilize vacuum blasting with garnet or steel shot abrasive on challenging task areas.
  • Tanks, bridges, and infrastructure containment
  • Tasks that call for recycled abrasive media.
  • Environmentally responsible
  • Processes that are gathered in plastic bags for proper disposal don't contain any dust or contaminants.
  • Abrasive media use expenses are reduced with closed-circuit blasting.
Best for Grit blasting requirement
Typical use Application and production requirement review
Next step Quote, brochure, or suitability discussion
Why Buyers Choose This Blasting System
Stronger blasting fit

Choose a grit blasting system suited to your cleaning intensity and surface preparation requirement.

Cleaner preparation results

Compare blasting suitability, output, and finish expectation before moving to quotation.

Configuration clarity

Review machine arrangement, accessories, and system fit before finalizing.

Support through selection

Our team assists with technical discussion, brochure review, and buying clarity.

How We Help You Finalize

Step-by-step guidance before pricing and final product discussion.

Share the blasting requirement

Tell us the surface type, cleaning requirement, and expected production need.

Compare suitable options

We help identify the suitable grit blasting setup for your requirement.

Review specifications and brochure

Check the technical details, application suitability, and support recommendation before finalizing.

Move to pricing and enquiry

Request the latest quote, brochure, and selection support through one clear enquiry flow.

Product Overview

Vacuum Grit Blasting Machine

A Vacuum blasting machine is suitable for different purposes, and applications for surface preparation before coating, and painting and needs only one man to operate thus it has an easy operating principle.

There are various blasters based on pressure vessels in combination with compressed air filters and pressure regulators that provide sufficient velocity for blasting operation in a dust-free environment. Abrasive media is automatically and directly recovered for reuse. No flying dust & abrasive material is there in the air to contaminate the surrounding.

The process is safe and dust-free thus other production processes can be carried out simultaneously close to the blasting operation.

A special valve on the pressure vessel allows working with a blasting pressure as low as 1 bar and as high as 7 bars with the same machine. A vacuum grit blasting system can be utilized on delicate blasting jobs where blasting on low pressures is a must.

A vacuum blasting machine appears with a special lightweight blaster head, blaster, and vacuum tube/pipe assembly, as well as a group of brushes to treat flat surfaces as it needs to move from one site to another for its easy operation. The very special fibers are used in brushes to provide the best performance and economy.

Powerful benefits of Vacuum blasting machine:

  • 99 % dust-free operation because of fully automated blasting & vacuum start/stop sequence provider.
  • Abrasive material free and Clean object surface after blasting.
  • automatic filter cleaning and dust discharge is available so
    No time-loss.
  • Easy disposal of dust collected in plastic bags.
  • The unit can be relocated and/or transported easily as it is portable in nature.
  •

Quality of dustless blasting machine includes:

  • Wear-resistant metering valve manages all abrasive material or media (also steel grits, fine aluminum oxide, etc.)
  • Oughta separate main air valve which provides almost wear- and maintenance-free use.
  • Have spray-painted, galvanized, and non-ferrous fittings.
  • Provide complete safety.

Environmentally friendly (Dustless Blasting)

  • No dust and contamination are there in the processes which are collected in plastic bags for safe disposal.
  • Closed-circuit blasting or dustless blasting saves on abrasive media utilization costs.

Vacuum blasting machine Manufacturers in India

Airoshot Blast is a company that Manufacturer, Supplier of Vacuum blasting machines in Jodhpur India. we also provide a Sand blasting machine, Shot blasting machine, Grit blasting machine with the best quality and low price.

Share Your Requirement

Send your job details for a faster machine recommendation and price response.

Tell us the component type, daily production target, and what you expect from the machine. Our team will respond with the relevant brochure, technical detail, and commercial guidance.

Product FAQs
What is Vacuum blasting machine used for?

Vacuum blasting machine is used for industrial surface preparation, cleaning, and finishing work where buyers need dependable grit blasting performance for production applications.

Which industries use Vacuum blasting machine?

Vacuum blasting machine is commonly considered by buyers in foundry, fabrication, steel processing, automotive, engineering, and project-based manufacturing depending on the type of component and production requirement.

How do I choose the right Vacuum blasting machine model?

The right model depends on component size, job handling method, required finish, output target, and plant usage. Airo Shot Blast helps buyers compare these points before finalizing Vacuum blasting machine.

Can I get the latest price for Vacuum blasting machine?

Yes. You can request the latest price for Vacuum blasting machine by sharing your requirement, preferred capacity, and production details so the team can guide you with a suitable commercial starting point.

Does Airo Shot Blast provide brochure and selection support for Vacuum blasting machine?

Airo Shot Blast can share brochure support, machine details, and requirement-based selection guidance for Vacuum blasting machine so buyers can compare models before moving to quotation.

What details should I send before enquiring about Vacuum blasting machine?

Before enquiring about Vacuum blasting machine, share your component type, material, production volume, finish expectation, and any preferred machine size or configuration for a more relevant response.
