Difference Between Shot Blasting Machine and Shot Peening Machine

Shot blasting and shot peening are two different processes that are used to clean or strengthen metal surfaces.

A shot blasting machine uses a high-pressure stream of abrasive particles, such as steel shot or grit, to remove surface contaminants, rust, and other debris from metal surfaces. The abrasive particles are propelled by a powerful compressed air or wheel blast system and impact the surface of the metal at high speeds, stripping away unwanted material. Shot blasting is commonly used to clean and prepare surfaces for painting or coating, and is also used to deburr and de flash metal parts.

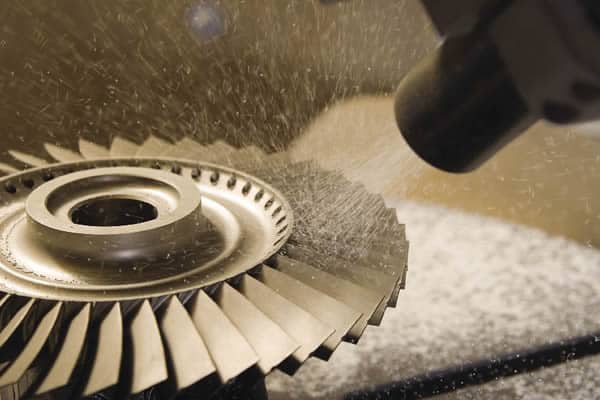

Shot peening, on the other hand, is a process that uses small, round-shot particles to bombard a metal surface in order to induce compressive stress. By bombarding the surface with these small shot particles, it creates small dimples or "peens" on the surface of the metal. This induces compressive stresses that can help to increase the strength and durability of the metal surface. Shot peening is commonly used on aircraft and aerospace components, as well as on metal parts that are subject to high levels of stress or fatigue.

In a nutshell, shot blasting is mainly used for surface cleaning and preparation while shot peening is used for surface strengthening by adding compressive stress to the metal surface.

Working of Shot Blasting Machine

Shot blasting machines use centrifugal force, air pressure, or mechanical wheels to propel abrasive particles at a high velocity onto a metal surface. The most common types of shot blasting machine are wheel blast machines and air blast machines.

A wheel blast machine uses a high-speed spinning wheel to propel the abrasive particles onto the metal surface. The wheel is typically made of steel or cast iron and is covered with abrasive particles, such as steel grit or aluminum oxide. The metal parts to be cleaned are placed in a blasting chamber and are then struck by the abrasive particles as they are propelled by the spinning wheel. This process strips away unwanted material, such as rust, paint, and debris, leaving the metal surface clean and smooth.

An air blast machine, on the other hand, uses compressed air to propel the abrasive particles onto the metal surface. The abrasive particles are fed into a blasting chamber and are then accelerated by compressed air onto the metal parts, causing the abrasive particles to impact the metal surface at high speeds. Air blast machines are well suited for blasting hard-to-reach areas and small parts.

Working of Shot Peening Machine

Shot peening machines use air pressure, or mechanical wheels to propel small round shot particles at a high velocity onto a metal surface. During the process, the metal parts to be strengthened are placed in a peening chamber, and the small round-shot particles are then propelled onto the surface of the metal. The small round-shot particles bombard the surface of the metal, creating small dimples or "peens" on the surface of the metal. This dimpling induces compressive stresses into the metal surface, which can increase the strength and durability of the metal. The peening process is carefully controlled to ensure that the correct level of compressive stress is induced, without causing any damage to the metal.

It is worth mentioning that both Shot blasting and shot peening machine can use a variety of abrasive or shot particles, such as steel shot, glass beads, or ceramic media, depending on the desired result and the type of metal being processed.

Types Shot Blasting Machine & Shot Peening Machine

There are several types of shot blasting and shot peening machines, each with its own set of features and capabilities. Here are some of the most common types of shot blasting machines:

• Wheel Blast Machines: These machines use a high-speed spinning wheel to propel abrasive particles onto the metal surface. They are one of the most common types of shot blasting machines and are used for a wide variety of cleaning and surface preparation applications. They can be further classified into tumble blast, hanger type shot blasting machine, spinner hanger, and table blast machines.

• Air Blast Machines: These machines use compressed air to accelerate abrasive particles onto the metal surface. They are well-suited for blasting hard-to-reach areas and small parts and can be classified into suction, pressure, and direct pressure machines.

• Shot Peening Machines: These machines use high-pressure streams of small, round shot particles to bombard a metal surface in order to induce compressive stress. They can be further classified into air blast, wheel blast and shot blasting with a peening media.

• Garnet Blasting Machines: These uses garnet abrasive as a media and suitable for sandblasting and surface cleaning process.

• Bead Blasting Machines: These use glass beads or ceramic beads as a media and mainly used for surface finishing process.

It's worth mentioning that variations and hybrid types of machines exist for specific applications like blasting and peening together or multiple stages of the blasting and peening process. The right type of machine depends on the material being processed, the surface finish desired, and the size and shape of the parts. Airo Shot Blast Equipment is the best place for both shot blasting machines and shot peening machines to buy from.
