Cylinder Shot Blasting Machine

Name: Cylinder Shot Blasting Machine
Brand: Airo Shot Blast Equipments

Payment Method :

100% T/T NEFT RTGS IMPS

Transportation Mode :

Air Transport

Sea Transport

Land Transport

More Details Call Now Request Enquiry

Price Range Get Latest Price

₹ 8Lakh - 20Lakh

Product Specifications

Size of blast wheel :

19 ½” X 2 ½”

No of blast wheel :

1-2

Power of blast wheel :

15HP

Shot flow rate/Minute/wheel :

150kg

Bucket elevator (size) :

600mm X 200mm

Control panel :

Centralized desk type panel

Principles :

Centrifugal wheel blasting

Shot velocity (meter/second) :

65 - 75

Types of dust collector :

Fabric bag dust collector/ Reverse pulse jet pleated filter dust collector

Cleaning of Dust Bags :

Motorized shaking\ pulse jet air

Applications

LPG A cylindrical shot blasting machine is designed to continuously clean the exterior surfaces of pipes and cylindrical objects (bottle containers, etc.)
During the blasting process, the cylinders are uniformly roughened, which helps paint adhesion and aesthetic appeal.

Watch Product Video

Additional Information

Color :

As per client requirement (Grey)

Country :

India

Brand :

Airo Shot Blast Equipments

Delivery Time :

15-20 Days

Production Capacity :

4-5

Packaging Details :

Polly Pack With Bubble Packing

Leading Supplier & Exporter

Trustseal Verified

ISO Certified

Manufacturer

LPG Cylinder Shot Blasting Machine

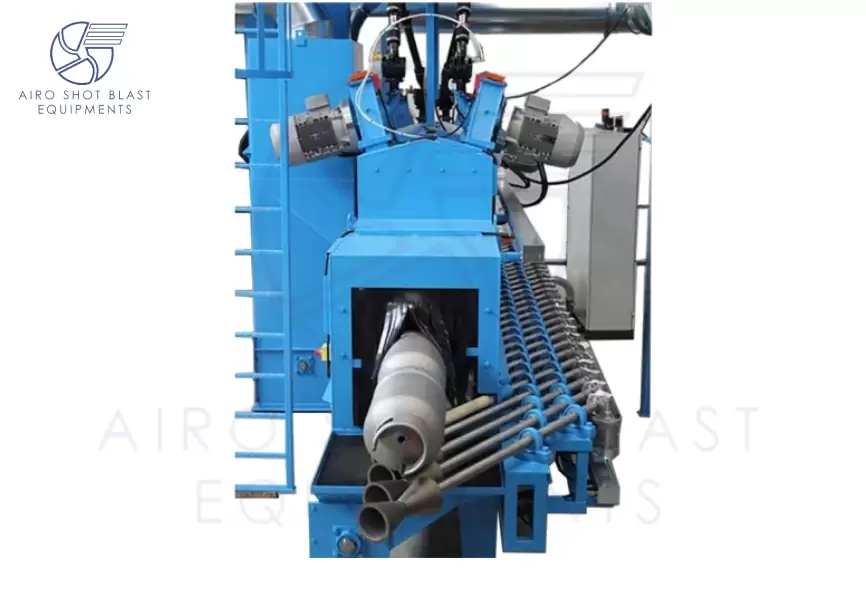

Cylinder Shot Blasting Machine is easy to operate with the least maintenance and the operator has to load and unload the cylinders on rotating diabolic rollers. The outside surface of the metallic LPG & CNG Gas Cylinder Shot Blasting Machine demands to be blast cleaned to remove rust, corrosion and prepare the LPG & CNG cylinders surface for thermal coating and painting.

It is used to automatically clean or etch the surface of the steel cylinders by blasting shots coming from Shot blasting wheels. The steel LPG & CNG cylinders take shot blasted as they pass through the blasting container. The cylinders also get rotated on the rollers as they pass through to the Shot blasting chamber to get the cleaning of the complete surface.

Cylinder Shot Blasting Machine Specification :

Technical Specification	Model S-800DB	Model S-400DB
Size of Blast Wheel	19^1/2” x 2^1/2	19^1/2” x 2^1/2”
No. of Blast Wheel	2 Nos.	1 No.
Power of Blast Wheel	15 HP X 2 Nos.	15 HP X 1 No
Shot Flow Rate/Minute/wheel	150 kg.	150 Kg
Shot Velocity (Mtr./Second	65-75	65-75
Shots Consumption Rate	Approx. 0.13 Kg/hp/hr	Approx. 0.13 Kg/hp/hr

Dimension details of Machine

a) Cabinet

(i)Length:	2500mm	2000 mm
(ii) Width	1200 mm	1200 mm
(iii) Height	1600 mm	1600 mm

b) Overall Dimension of Machine with Dust Collector

(i)Length:	9000 mm	8000 mm
(ii) Width	4500 mm	4000 mm
(iii) Height	5000 mm	5000 mm

c) Dimension of Dust Collector

(i)Length:	1850 mm	1350 mm
(ii) Width	1350 mm	1350 mm
(iii) Height	3600 mm	3600 mm

d) Ground space required for machine

(i) Length	9000 mm	8000 mm
(ii) Width	4500 mm	4500 mm
Dust Collector Capacity	3000 cfm	2000 cfm
Motor HP for Dust Collector lower	7.5 H.P.	5 H.P.
Filter cloth area of Dust Collector	48 Sq. Mtr.	36 Sq. Mtr.
Conveyor System	Dia bola type	Dia bola type
Job Movement	Cylinders while moving forward also rotates.	Cylinders while moving forward also rotates.
Bucket Elevator (Size)	600mm x200mm	600mm x200mm
Bucket size : (i) Length :	125 mm	100 mm
(ii) Width :	125 mm	75 mm
(iii)Height :	90 mm	83 mm
Total power requirement	44.0 H.P	25.0 H.P
Control Panel	Centralized Desk type Panel	Centralized Desk type Panel
Noise Level	80-85 dB (A) at 3 Mtr. From machine	80-85 dB (A) at 3 Mtr. From machine
Cleaning Standard	SA 2.0 to SA 2.5	SA 2.0 to SA 2.5
Environmental Effect	Green Machine	Green Machine
Foundation	Pitless	Pitless

Cylinder Shot Blasting Machine is composed of:

Blasting Chamber
Lower cabin with the helical mover
LPG Cylinder Rotation and Moving System
Elevator
Sift & Separator
Dry Filter Unit (dust collector)

Standard Accessories for LPG Cylinder Shot Blasting Machine

Blasting Cabinet with Inventory Door, Bucket Elevator, Abrasive Cleaning System, Abrasive Storage Silo.
Automatic Abrasive Control Valve cum sound reducer.
One /Two Numbers of Blast Wheel Assembly entire unit with bearing housing and motor and mounting plate.
Cabinet Liner Manganese Steel Liner in size 12 mm indirect blast zone remaining area lined with rubber liner 6 mm thick.
Fabric Bag Dust Collector with a dynamically balanced blower unit with ducting to keep Dust Collector about 1 meter away from Blast Cabinet. Ducting has a damper valve to regulate suction. The automatic Mechanical Shaker unit is provided for Dust Bags.
Independent Cubical Control Panel with ammeter and Voltmeter and timers, push-button, contactor, thermal overload relays with inbuilt single phase preventer, overload protection, HRC fuses, indicating lamps and main isolator, etc.
Electrical Motors Various motors as items in the technical term sheet having TEFC Construction 3 phase, 415 volts, 50 cycles, ABB/CG make only. Generally as per enclosed Technical Specification Sheet

Features of Cylinder Shot Blasting Machine :

Long working life
Low maintenance cost
High efficiency
