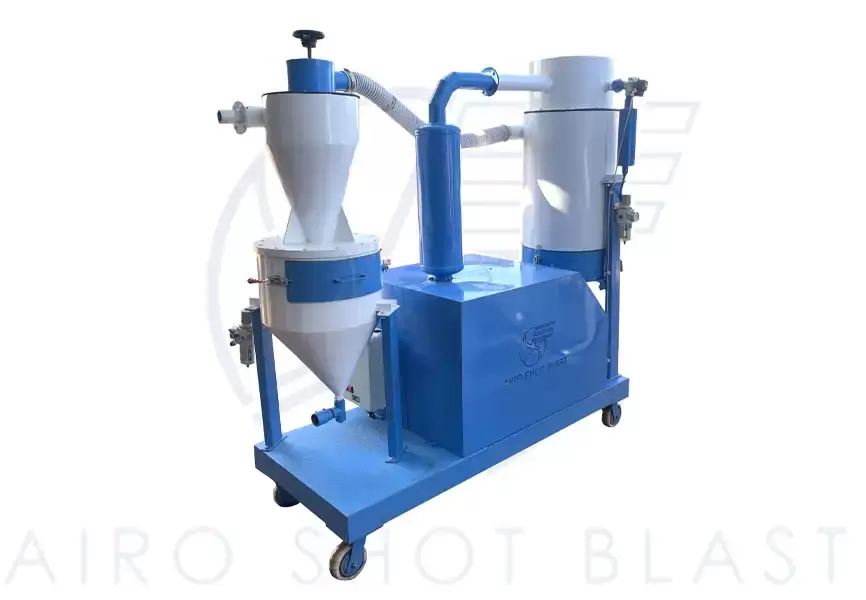

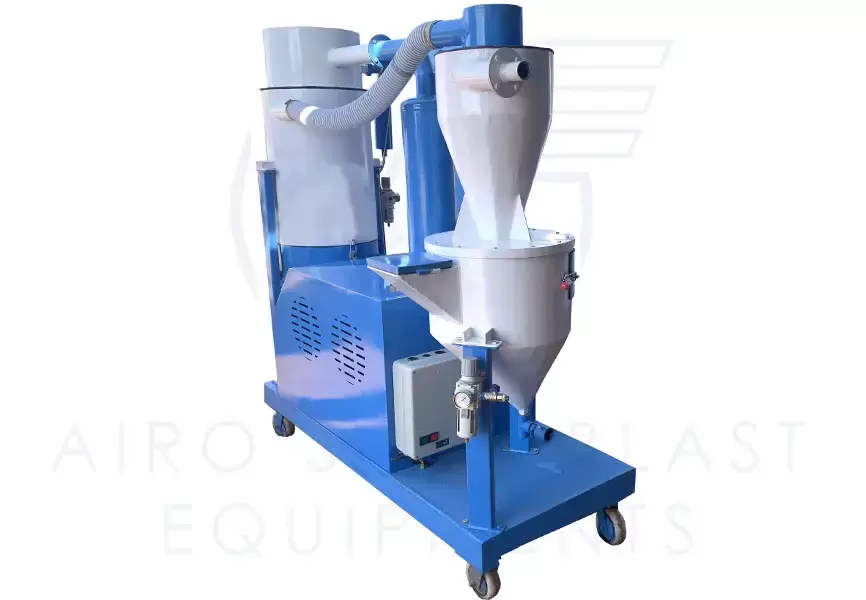

Vacuum shot blasting machine

Payment Method :
100% T/T NEFT RTGS IMPS
Transportation Mode :

Air Transport

Sea Transport

Land Transport
Price Range *Min. & Max. Price of Product may varies according to model & requirement of client. Get Latest Price
₹ 3 lakh - 8 Lakh
Blasting capacity :
3-6 mtr\hr with 6mm nozzle
Overall dimensions :
800mm X 2000mm X 2200 mm
Machine type :
Automatic/ mannual/ semi automatic
Compressed air required :
90 CFM / min at 6.33 sq mtr/hr
Type of nozzle required :
Tungsten carbide
Principle :
Pressure type
Type of dust collector :
Fabric bag dust collector /Reverse pulse jet pleated filter type dust collector
Cleaning of dust bags :
Motorized shaking\ pulse jet air
  • Utilize vacuum blasting with garnet or steel shot abrasive on challenging task areas.
  • Tanks, bridges, and infrastructure containment
  • tasks that call for recycled abrasive media.
  • Environmentally responsible
  • Processes that are gathered in plastic bags for proper disposal don't contain any dust or contaminants.
  • Abrasive media use expenses are reduced with closed-circuit blasting.
Additional Information
Color :
As per client requirement
Country of Origin :
India
Brand :
Airo Shot Blast Equipments
Delivery Time :
15-20 Days
Production Capacity :
5
Packaging Details :
Polly Pack With Bubble Packing

Leading Supplier & Exporter

Trustseal Verified

ISO Certified

Manufacturer

Vacuum Shot Blasting Equipment

The Vacuum shot blasting machine or Dustless Blasting Machine is suitable for different purposes, and applications for surface preparation before coating, and painting and needs only one man to operate thus it has easy operating principles. There are various blasters based on pressure vessels in combination with compressed air filters and pressure regulators that provide sufficient velocity for blasting operation in a dust-free environment. Abrasive media is automatically and directly recovered for reusable. No flying dust & abrasive material is there in the air to contaminate the surrounding.

The process is safe and dust-free thus other production processes can be carried out simultaneously close to the blasting operation.

Vacuum Shot Blasting Machine Advantages:

  • 99.99% dust-free operation because of fully automated blasting & vacuum start/stop sequence provider.
  • After the blasting object surface is Clean and abrasive material free.
  • Automatic filter cleaning and dust discharge are available so no time loss.
  • Easy disposal of dust collected in plastic bags.
  • The unit can be relocated and/or transported easily as it is portable in nature.
  • A wide range of brushes are available to fit all (flat, cornered, radius) surfaces

A special valve on the pressure vessel allows working with a blasting pressure as low as 1 bar and as high as 7 bars with the same machine. The dustless shot blasting machine technique can be used on delicate blasting jobs where blasting at low pressures is a must.

Dustless Blasting Machine

A vacuum/Dustless shot blasting machine arrives with a special lightweight blaster head, blaster, and vacuum hose/pipe assembly, as well as a set of brushes to treat flat surfaces as it needs to move from one site to another for its easy operation. The very special fibers are used in brushes to provide the best performance and economy.

Vacuum blasting machine applications

  • Wear-resistant metering valve handles every abrasive media copper slag (also steel grits, fine aluminum oxide, etc.)
  • Become a separate main air valve that provides almost wear- and maintenance-free use.
  • Have spray-painted, galvanized, and non-ferrous fittings.
  • Provide complete safety.

Environmentally friendly (Dustless Shot Blasting Machine)

  • No dust and contamination are there in the processes which are collected in plastic bags for safe disposal.
  • A closed-circuit shot blasting machine saves on abrasive media utilization costs.
Vacuum Blasting Machine price in India

Vacuum blasting machine price in India depends on the type of Dustless blasting machine. We offer all types of vacuum, and dustless blasting machines in India at low a price for sale. we design shot blasting machines according to customer requirements.

Vacuum shot blasting machine Manufacturer

Airo Shot Blast Equipment is a Leading Vacuum shot blasting machine manufacturer in India at a low price. The cost of the Blasting Machine depends on the production capacity and size of the job. We are the leading Sand blasting machine manufacturer in India that offers the complete automatic grit blasting machine, Sand blasting machine, Shot blasting machine, abrasive media, and vacuum/dustless blasting machine for sale.
