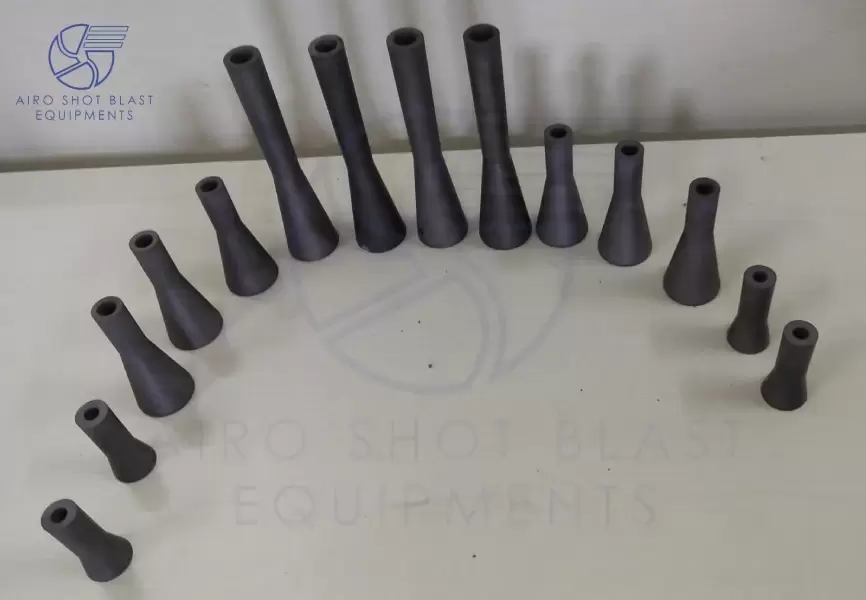

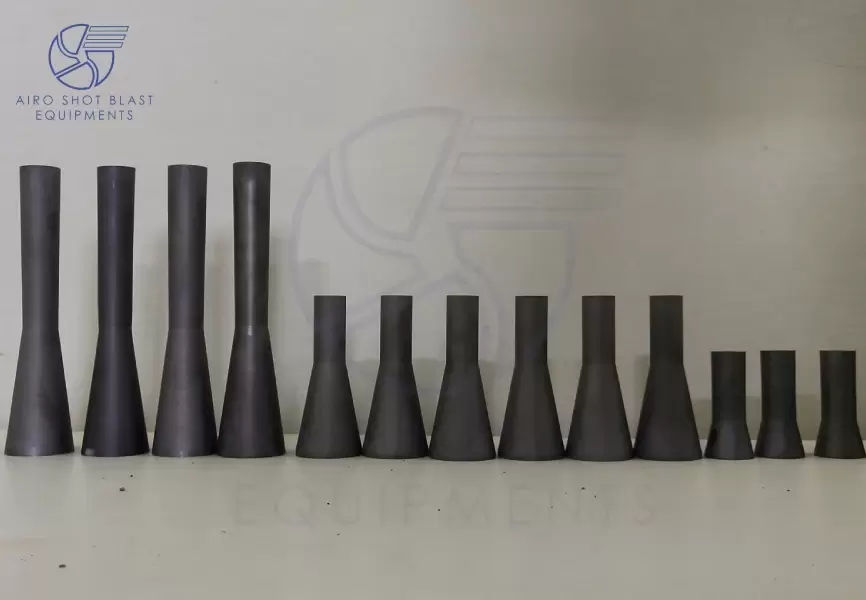

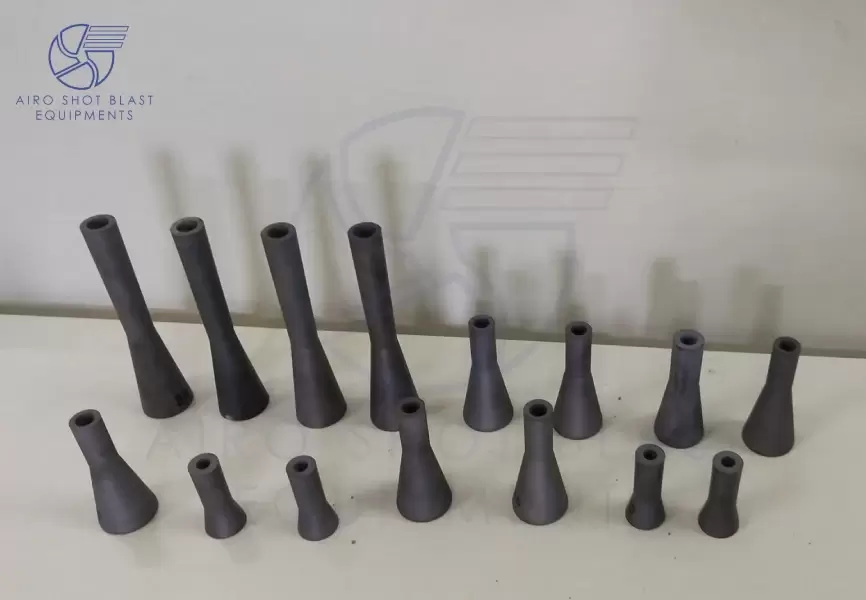

Tungsten Carbide Nozzle

Introduction Of Tungsten Carbide Nozzle

A tungsten carbide nozzle speeds air & abrasive media combination while it exits hose's end. Taper & length of nozzle's inlet & output controls pattern & acceleration of abrasive media that exits tungsten carbide sand blasting nozzle. Liner material's formatting influences its wear resistance.

Tungsten carbide venturi nozzle alongside an acetal jacket is a robust & user-friendly solution for your sand blasting machine operation. The tungsten carbide nozzle is a reliable choice for tough applications. Acetal jacket adds an extra layer of protection without sacrificing ease of use.

These heightened-pressure jet nozzles are composed of tungsten carbide, which is abrasion-resistant. Based on classic smith series 65 tri-cone bit nozzles. Their small size makes them excellent for use in assorted downhole tools, such as bits, hole openers, fly-cutter reamers, barrel reamers, and any other tooling that needs heightened pressure, and heightened acceleration fluid. They are created to compress fluids as they flow via sand blasting nozzle, improving velocity when fluid escapes aperture.

Elevated pressure discharge beyond cutting shell enhances both ROP (rate of penetration) and cutter life. By properly releasing cuttings out from cutter's greatest edge, cuttings aren't re-cut & employed while abrasives, whichever shortens life of any cutter.

Tungsten Carbide Blasting Nozzle

Tungsten carbide blasting nozzle is classified according to the diameter of their orifices in 1/16-inch increments. The size of tungsten carbide nozzle aperture controls abrasive & air consumption. Air consumption is expressed in ft3/min (cfm) at a certain pressure. When selecting a nozzle, regard unrestricted air in cfm, an abrasive blasting machine capacity, interior diameter of pipe, & blast & air hoses. These components must be of comparable size to achieve peak performance.

Tungsten carbide blast nozzle featuring a venturi-shaped tungsten carbide liner, uncultivated rubber jacket, & dual-compound tough rubber threads. Thread size & entrance dimensions change per nozzle series. Incorporates one nozzle washer. Blast nozzle alongside an unadulterated barrel, tungsten carbide liner, & metal jacket. All tungsten carbide nozzles feature 3/4" threading & a 1/2" diameter entrance.

After all relevant equipment has been properly constructed & tested, machinist aims nozzle toward exterior to be cleansed & presses small control lever to start blasting. Machinist carries nozzle & drives it at a steady speed to accomplish the expected cleanliness. Each access should coincide somewhat. Nozzle must be superseded once opening contains unraveled 1/16-inch exceeding its foremost size. If the compressor's nozzle is too big, blast pressure will be low. If sand blasting hose nozzle is too big, it will wear out quickly. If nozzle is too tiny, velvety media discharge will be challenging to obtain.

Tungsten Carbide-lined long venturi nozzles alongside aluminum jackets. Majority of contractors utilize tungsten carbide while a liner material caused by its long life & influence resistance; aluminum jacket adds to nozzle's tough nature. Long venturi nozzles are utilized in normal utilization wherever blaster is more than 30 cm (12") from exterior.

Tungsten carbide nozzle incorporates a 25 mm (1") inlet, while Airo Shot Blast Equipments has a 32 mm (11⁄4") inlet, both unrestricted alongside a traditional big thread (/50) & satisfactory thread. Airo Shot Blast Equipment heightened velocity extended venturi-type nozzles contain been engineered to increase blast cleaning rates while ensuring consistent abrasive distribution. Venturi design revs air/abrasive mix while it withdraws nozzle, adding momentum this could boost productiveness & decrease abrasive media consumption by until 40% when corresponded to straight bore nozzles.

Recognized while the industry normal for unrestricted blasting applications alpha-blast tungsten venturi nozzles are enormously stable for usefulness in applications wherever rough handling is inescapable, delivering the most increased resistance to impact & flexing. Alpha-Blast tungsten carbide long venturi nozzles are especially appropriate for usage alongside steel shot abrasives, non-essential slag abrasives & ground glass. Broad throat entrance formatting improves productiveness by 15% compared to standard venturi nozzles.

Tungsten Carbide Nozzle Features

• Size Specifications: Contractor thread is 2" UNC (50 mm) coarse, for secured connections.
• Wide Throat Entry: The 1 1⁄4" (32 mm) broad throat opening, paired alongside a large venturi, provides maximum airflow & blast accuracy.
• High-Quality Materials: This nozzle is equipped alongside a tungsten carbide liner, ensuring longer life & wear resistance.
• Contractors' Choice: It's a tried-and-true pick for specialists, dubbed original contractor choice.
• Durable Construction: Its traditional-weight aluminum jacket & thread, along tungsten carbide liner, deliver long-lasting performance.
• Accessory Ready: Perfect for usefulness alongside nozzle washers for a stable & efficient setup.

Tungsten Carbide Nozzle Benefits

• Tungsten carbide orifice insert is resistant to erosion & corrosion, ensuring a extended wear life.
• A balanced spray pattern alongside tapering corners ensures consistent range when sprays overlap.
• To prevent damage, the tip orifice insert is suspended in the stainless steel angle body.
• Suitable for a variety of components & extensions.
• Tungsten carbide nozzles are provided for plywood glue applications.

Tungsten Carbide Nozzle Price in India

We are one of the best tungsten carbide nozzle manufacturers and also the supplier of tungsten carbide blasting nozzle in India. Our tungsten carbide nozzle price is low compared to other industries. We offer all types of abrasive blasting machines, automatic sand blasting machine, portable type shot blasting machines, cabinet type grit blasting machines, sand blasting machine spare parts, sand blasting helmets, remote control valves, abrasive media, mineral powder, thermal spray wire, thermal spray gun, etc.
