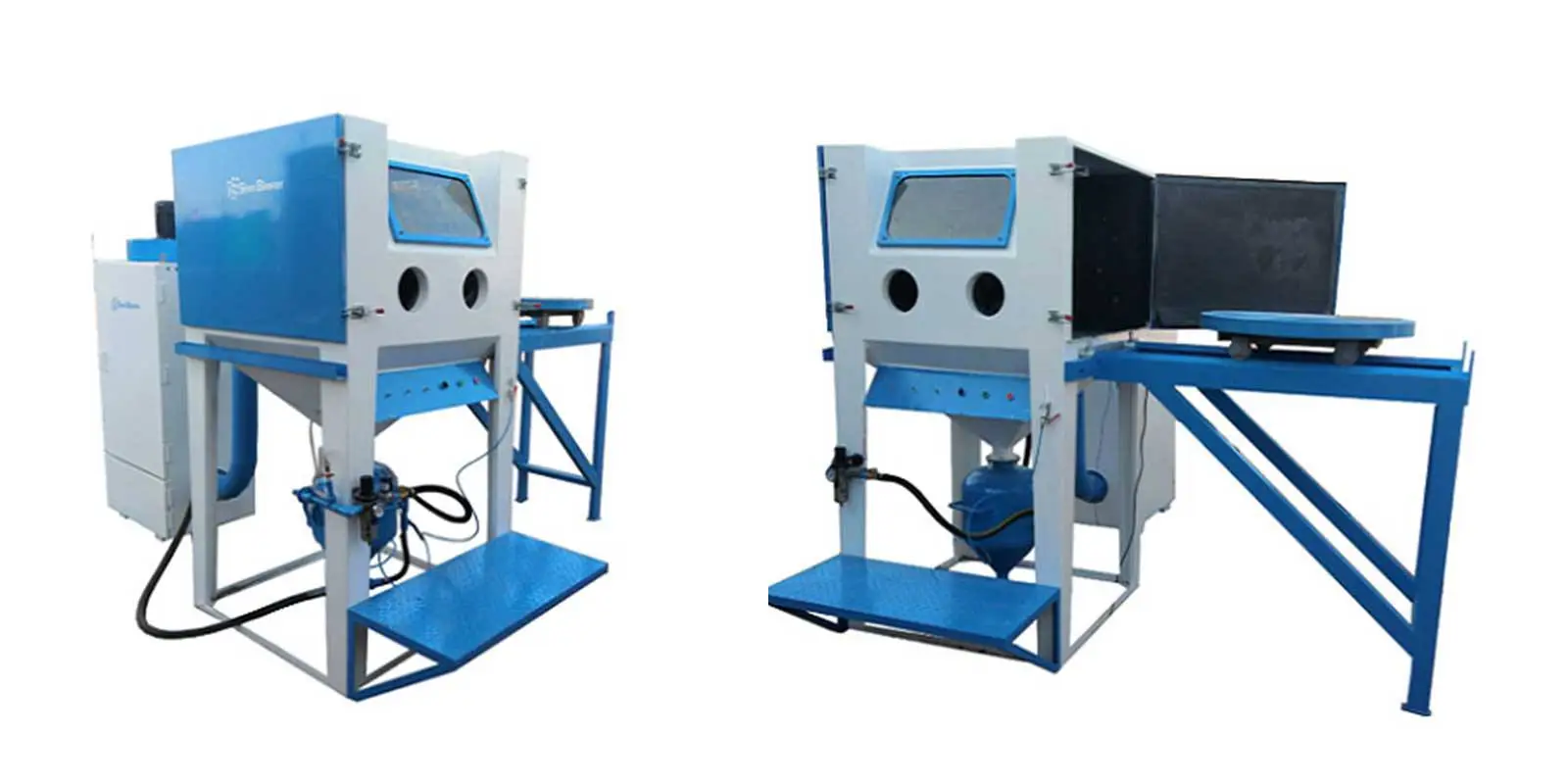

What is Suction Blasting Cabinet?
Suction Blasting Cabinet works on the phenomenal process of suction. In this, the gun has two inlet holes, one for abrasive suction & another one for creating a vacuum. Vacuum creation forms a suction process inside the suction blasting gun.
Mechanism of Suction Blaster
The mechanism of Suction sand Blaster is different from other blasting models. This Suction sand blast has two input holes & one output hole for blasting. Two input hole one is for suction of abrasives media another one for creating a vacuum inside the suction blasting from compressed air is flown through a hole. It requires 35 CFM & 6-7kgf/cm2 pressure of air compressor.
Working process of Suction Blasting Cabinet
Suction Blasting Cabinet - Initially start the air compressor and fill the abrasive material in the Suction sand blasting cabinet and blasting substrate keep in the cabinet. The sandblaster air compressor provides a large volume of high-pressure air that is controlled by the Solenoid valve or ball valve. Solenoid valves are used wherever fluid and airflow are to be controlled automatically. After that Non-return valve is used for providing safety to the moisture separator. The ball valve is controlled by the operators manually (On/Off). Air compressor air enters the suction gun through the Pipe If the Ball Valve is on then the vacuum created inside the gun due to this occasion creates suction in the gun. Abrasives materials propellers on the abrasive surface through the gun. through air compressor directly air provided on the mixing tube for high speed propelling. Blaster surface and blaster media both have lived in the cabinet. The sand blasting cabinet is a dust-free environment. Because the sand blasting cabinet has a dust collector that is collect the dust.
NOTE: Cabinet includes a complete package of Machines, all equipment required for abrasive blasting & it eliminates the requirement of safety equipment.
Suction Blasting Cabinet Manufacturer
Suction Blasting Cabinet Manufacturer in India. We are a Manufacturer, Exporter, Supplier of various types of cabinets like Suction Sand blaster Cabinet, Shot Blasting Cabinet, Grit Blasting Cabinet & in this cabinets are further categories in Pressure Blasting Cabinet, Wet Blasting Cabinet & Suction Blasting Cabinet.
Suction Blasting Cabinet Price
Suction Blasting Cabinet price depends on the size of the abrasive tank & type of Suction sand blaster Cabinet. Suction sand blaster Cabinet price also depends on the manufacturing technique. Airo Shot Blast provide sand blasting machine, shot blasting machine, & grit blasting machine.
