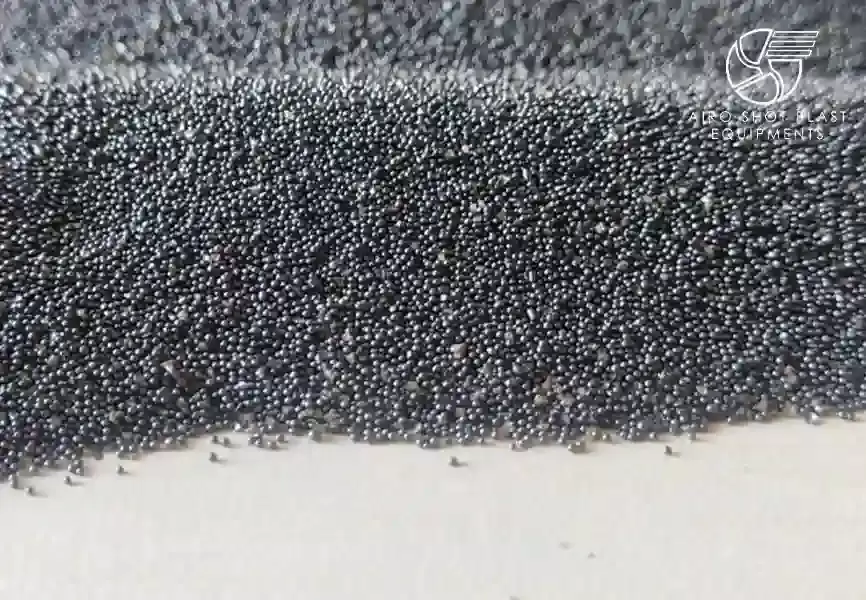

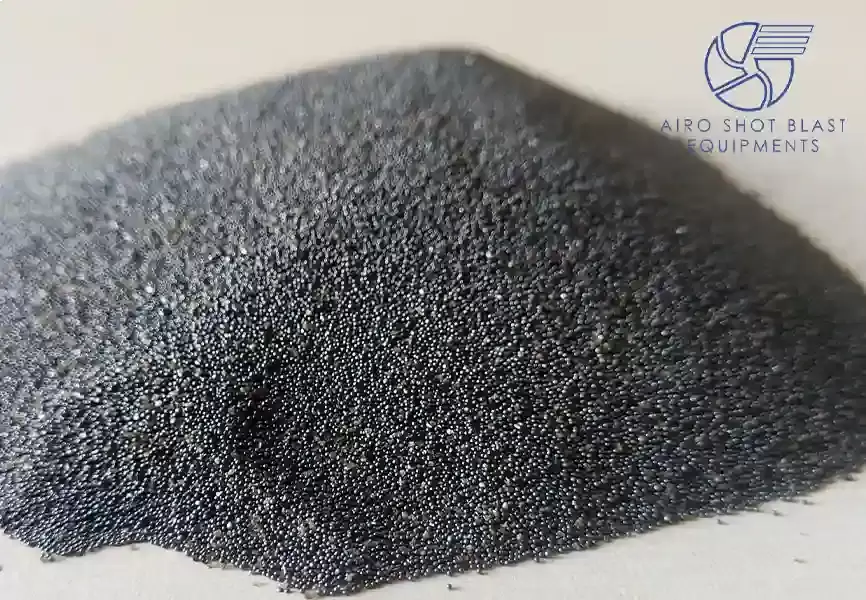

Steel Shots are spherical or round particles like a circular ball made of molten steel through an atomization process; these cast steel shots abrasive is available in different sizes & hardness. These are made from steel scrap. It is made in an electric furnace. First, the steel scrap is melted in the furnace then it is atomized/converted into the shot by a water jet.
Steel Shots Manufacturer
We are the largest Steel Shots Manufacturer in India. It is durable in nature due to its low variability, the impact of blasting actually further tempers the shot so that its hardness increases over time, allowing the media to deliver consistent, repeatable performance over thousands of cycles.
It is an extremely low breakdown rate; even no dust is produced in the manufacturing process. Delivering high-impact energy and fast cleaning rates, It is used to produce a very bright finish. The grade or size of the steel shot helps in determining the finishing achieved on the surface of the metal. steel shot price can vary depending on a number of factors, including the size and quality of the shot, and the quantity purchased.
In the manufacturing of it, a minimal amount of dust is created in the blasting process. These are essentially used to clean metal surfaces and parts like de-sanding and cleaning foundry castings, descaling metal sheets, and surface preparation before coating. Steel Grit is the other part of abrasives, this is a high cutting capacity.
Steel Shot Blast Media
Steel Shot blast media is a spherical abrasive media used for cleaning, peening, and surface finishing operations. Steel Shots abrasive is made of low carbon steel and is produced by a special heat treatment process. Steel Shots are used in a wide range of industrial applications, including foundry and forging operations, shot peening to improve the fatigue life of components, cleaning and surface preparation, and deburring and deflashing of castings and other metal parts.
The spherical shape of the Steel Shot in India makes it an effective abrasive media as it can easily conform to complex shapes and surfaces, and its hardness and density allow it to remove surface contaminants and impurities efficiently. Steel Shot blast media is available in various sizes and hardness grades to accommodate different surface finishing and cleaning requirements.
Types of Steel shots
Basis
Steel Shots
Solid Steel Shots
Raw Material
Basis raw material has lower physical properties & composition
Raw Material is of exact composition without any material defect (blow holes, porosity, shrinkage, etc.), and wears out nominally during its use.
Hardness
Various a lot(40-50 HRC)
Marginal variation(50-52 HRC)
Dust
High Dust Generation
No dust generation
Grain Size
Varies a lot
No variation
Performance Consistency
Lower consistency as size & hardness varies a lot
High consistency as size & hardness have no variation
Time Consumption
Higher Consumption
Reduces time for shot blasting
Inventory Cost
Higher inventory due to high consumption, more money & space required
Saves on inventory cost, eventually reducing operating cost
Steel Shots Size
Solid steel shot designation (mm)
Equivalent cast Steel shots size
0.80
A-330
1.00
A-390
1.20
A-460
1.40
A-550
1.60
A-660
1.90 -2.00
A-780
Chemical Composition
Carbon
0.60% to 0.80%
Manganese
1.10% max
Sulphur
0.045% max
Phosphorous
0.035% max
Silicon
0.35% max
Hardness
50-55 HRC
Steel Shots Price
Our Steel Shots Price is best as compared to others. Steel shot in India is a small size that will result in a smoother and more polished surface. it is with large size will clean more aggressively but produce a rougher surface. Both pneumatic sand blasting machine and wheel shot blasting machine can be used to accelerate the steel shot onto the blasting surface. Due to its hardness and density, it can be recycled 3000 times before replacement.
Steel shots guides to spheroidal grains assembled of molten steel across an atomization technique, obtainable in diverse sizes & hardnesses. Steel grit illustrates grains accompanied by a mostly angular shape. These seeds are received by grinding steel shot, thus they display thoughtful edges & broken branches. More difficult when compared accompanied by steel shot, it is even unrestricted in distinct sizes & hardnesses.
Steel Shots price is ₹ 65 /KG - 100 /KG. The price of steel shots varies based on several factors such as the size of the steel shots, the quality, and the quantity. all types of steel shots size are offered by Airo Shot Blast Equipment at a low price.
What are the different grades of steel shots abrasive?
Steel shots abrasive come in various grades, which are determined by the hardness, size, and shape of the shots. Common grades include S-780, S-660, S-550, and S-330 steel shot in India. The higher the number, the harder the shot and the more effective it is for abrasive blasting and other applications that require a high level of impact.
What is the difference between steel shots and steel grits?
Steel shots are spherical in shape and are used for abrasive blasting, peening, and other applications that require a high level of impact. Steel grits, on the other hand, are angular in shape and are used for applications that require a more aggressive cleaning action, such as removing heavy rust and scale. Steel grits are also used for surface preparation and surface finishing, but are typically less durable than steel shots.
